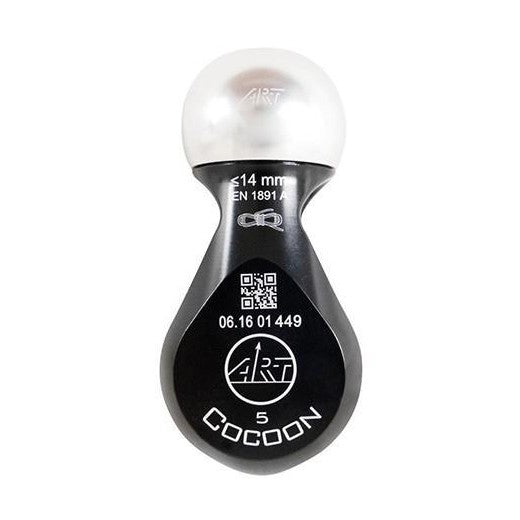

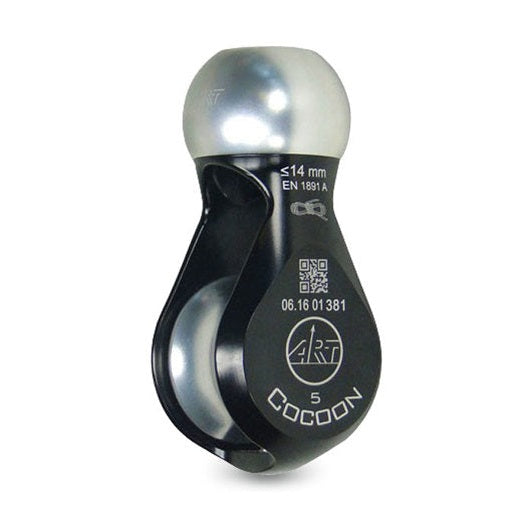

A.R.T. Cocoon 5 Arborist Pulley
or 4 interest-free payments with Paypal Pay in 4.
SPEND $150 & GET FREE SHIPPING + JOHN DEERE CLASSIC TRUCKER CAP*. *Free shipping excludes bulky items and mowers. Gift is automatically included with eligible orders.
Limited Stock Availability
The Cocoon 5 Redirect Pulley stands out with its innovative design and exceptional functionality, making it an essential tool for climbers and arborists. Its unique cap nut closure system allows for easy and secure installation without the need for tools.
Key Features:

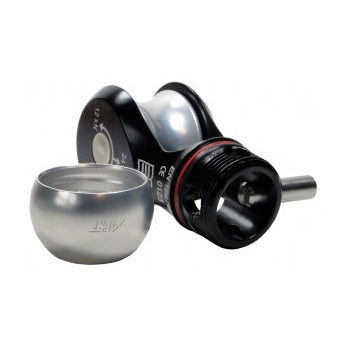

- Ingenious Cap Nut Closure: Dyneema slings, rope slings, or the RopeGuide’s ZipAbsorber are secured inside the pulley with a pin, and the cap nut is tightened with minimal effort. A black O-ring provides resistance to prevent accidental release, with a yellow or red signal ring indicating if the cap nut is not fully tightened.

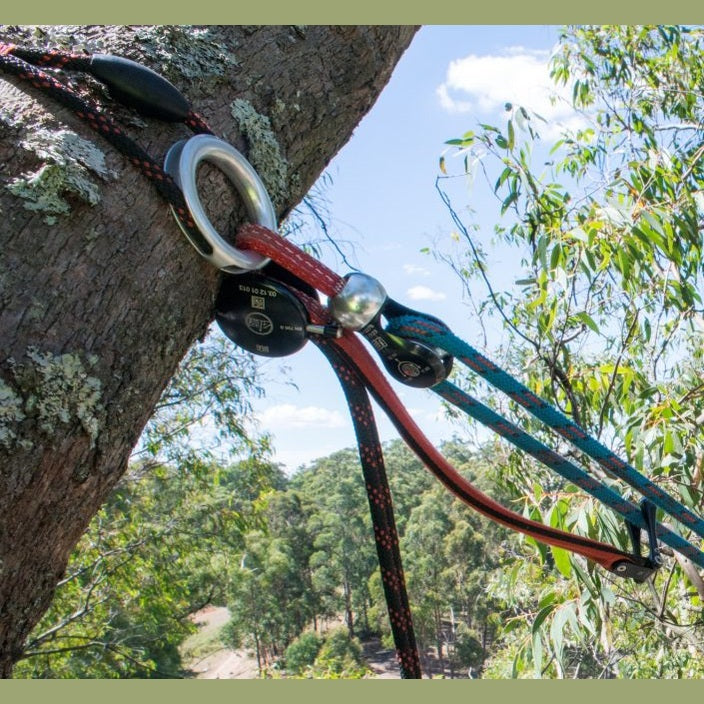

- Versatile Mounting: The pulley can be mounted with a 90° twist, ideal for use with the RopeGuide, ensuring rope lines run consecutively.
- High-Quality Construction: Made from aluminium, the body, bearings, and cap nut are machined from solid material. The roller is equipped with two encapsulated, high-quality SKF ball bearings for smooth operation.
- Certified Safety: Tested and certified for PPE according to EN 12278, suitable for textile ropes up to 14mm in diameter (EN 1891).
Specifications:
- Weight: 166 g
- Sheave Diameter: 33 mm
- Max Rope Diameter: 14 mm
- Rope Type: EN 1891 A
- Certification: EN 12278
- Service Life: 10 years
- Strength: 22 kN
- Breaking Load: 28 kN
- Weight: 177 g
- Rope Compatibility: 8mm double-braid twin strand, 50% Technora, 50% Polyester with a 12-strand 100% polyester core
Additional Features:
- Enhanced Friction Management: The 33mm diameter sheave improves friction management, making the pulley ultra-smooth and almost frictionless.
- Easy Sling Changes: The O-ring sealed, threaded ball-cap allows for easy sling changes in the field.
- Made in Germany: High-quality manufacturing ensures durability and reliability.
Safety Note: Adequate training and judgment are essential when using this equipment. Ensure you are competent in its use, and do not use any height safety or arborist equipment without appropriate training.
