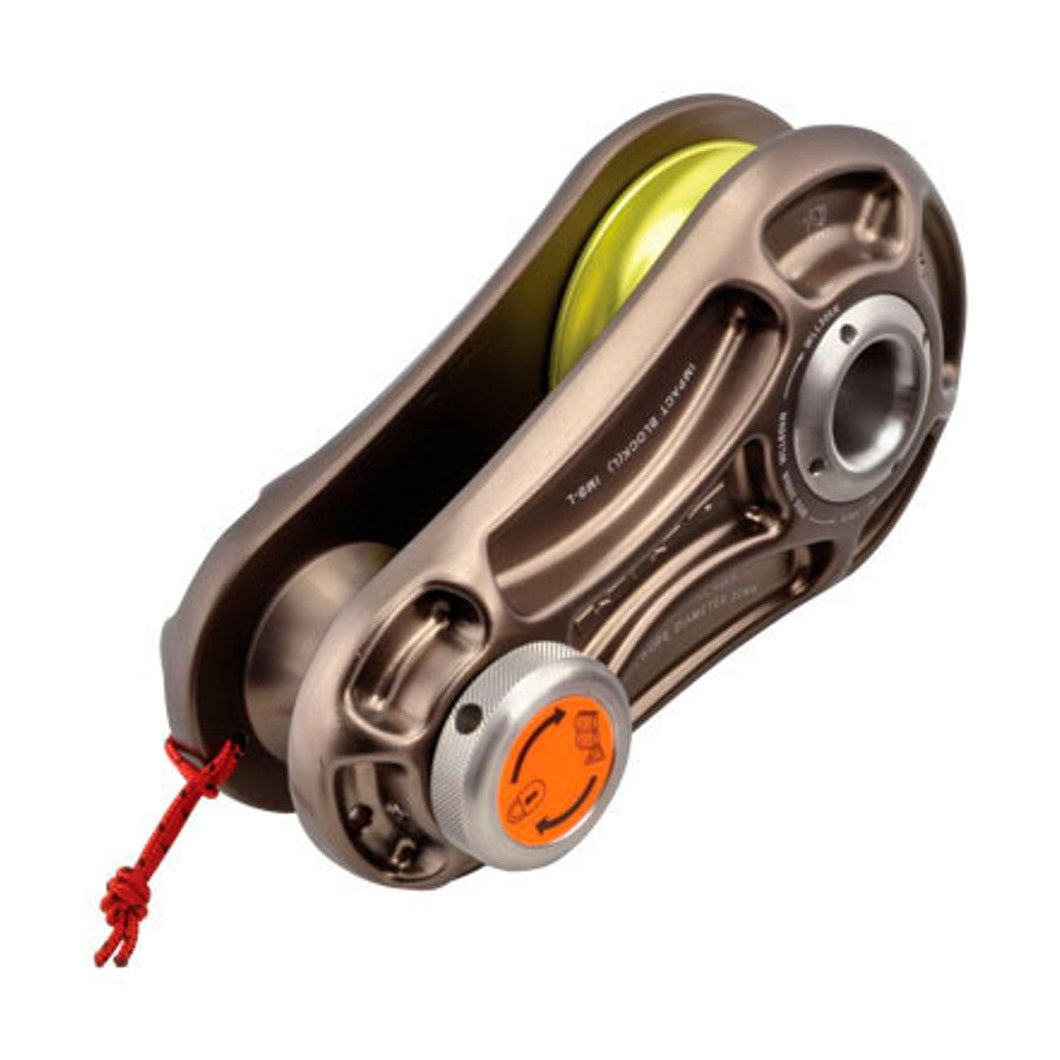

DMM Large Impact Rigging Block

Limited Stock Available

Unmatched Strength and Performance for Rigging

The DMM Large Impact Rigging Block is the result of a 3-year collaboration with Treemagineers, designed to be the ultimate tailboard rigging block. Suitable for ropes up to 3/4 inch in diameter, this block boasts a Working Load Limit (WLL) of 6.74 tons and weighs just 7.65 lbs.

Key Features:

• High-Quality Materials: Combines high-quality materials and advanced production processes for a rope-friendly, durable, and robust block.
• Lightweight and Strong: Despite its lightweight design, it has passed dynamic, torsion, and static tests, showcasing its exceptional strength-to-weight ratio.
• Enhanced Security: Features an interlocking anchor bollard for doubled security.
• Efficient Design: Oversized ball bearings reduce friction and wear, promoting efficiency.
• Seamless Transitions: Integrated sheave with side plates ensures smooth transitions for your rigging line.
• Hollow Axle Design: Facilitates complex rigging configurations and allows for maintenance such as servicing bearings or replacing the sheave.
• Robust Construction: Hot-forged from 6082-T6 aluminium alloy, polished, heat-treated, and anodized for a robust finish.
• Long-Term Use: Validated for long-term use in tough environments with demanding operators.

Technical Information:

• Maximum Rope Diameter: 3/4 inch
• Working Load Limit (WLL): 6.74 tons
• Weight: 7.65 lbs
• Material: 6082-T6 aluminium alloy
• Maximum Width of Textile Anchor Slings on Anchor Thimble: Ø27 mm

The DMM Large Impact Rigging Block is designed for industries where loads may be dropped onto rigging with considerable impact forces. Its combination of lightweight design, high performance, and durability makes it an essential tool for redirect rigging, winching, and snatching stem wood.
