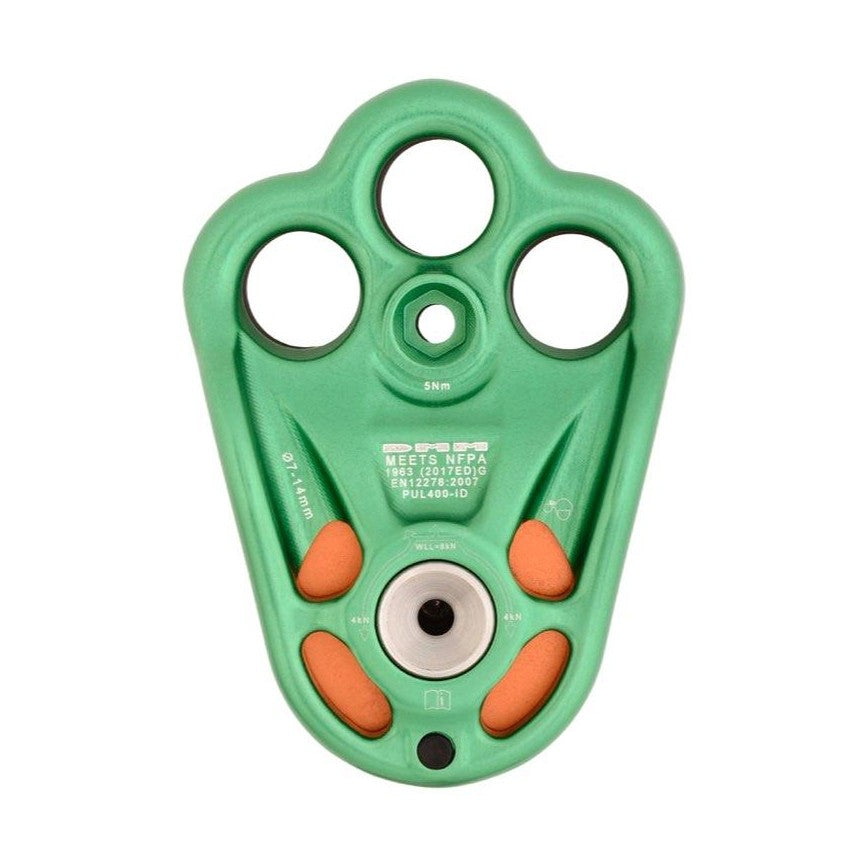

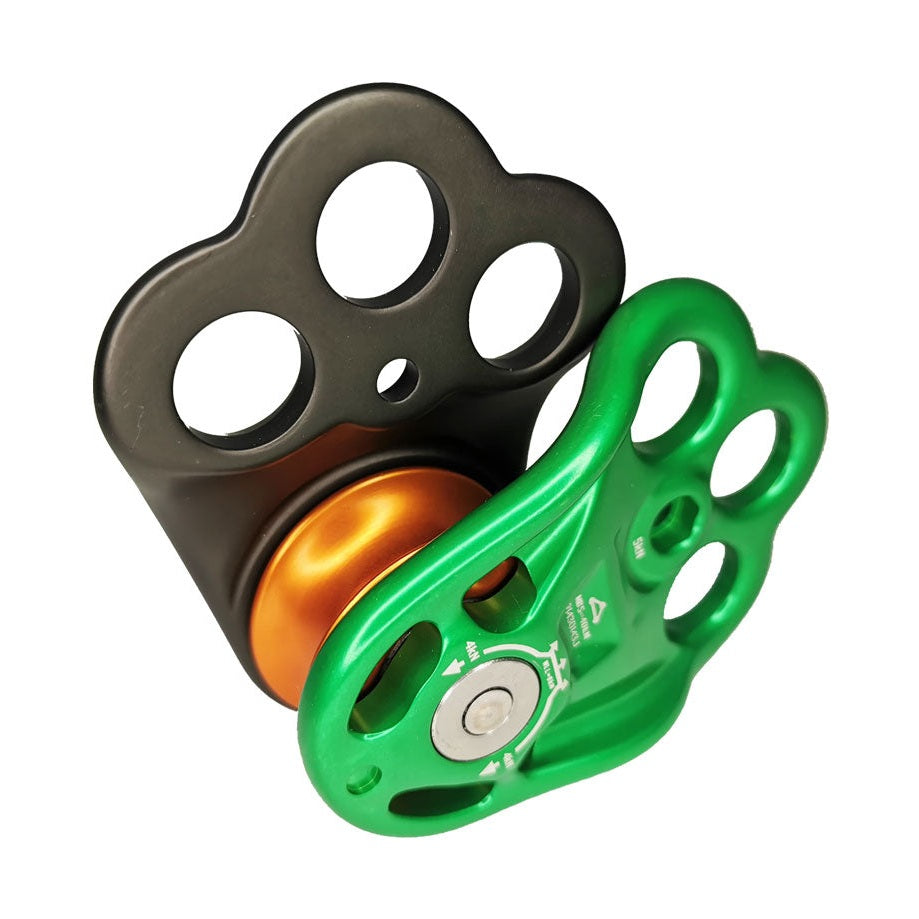

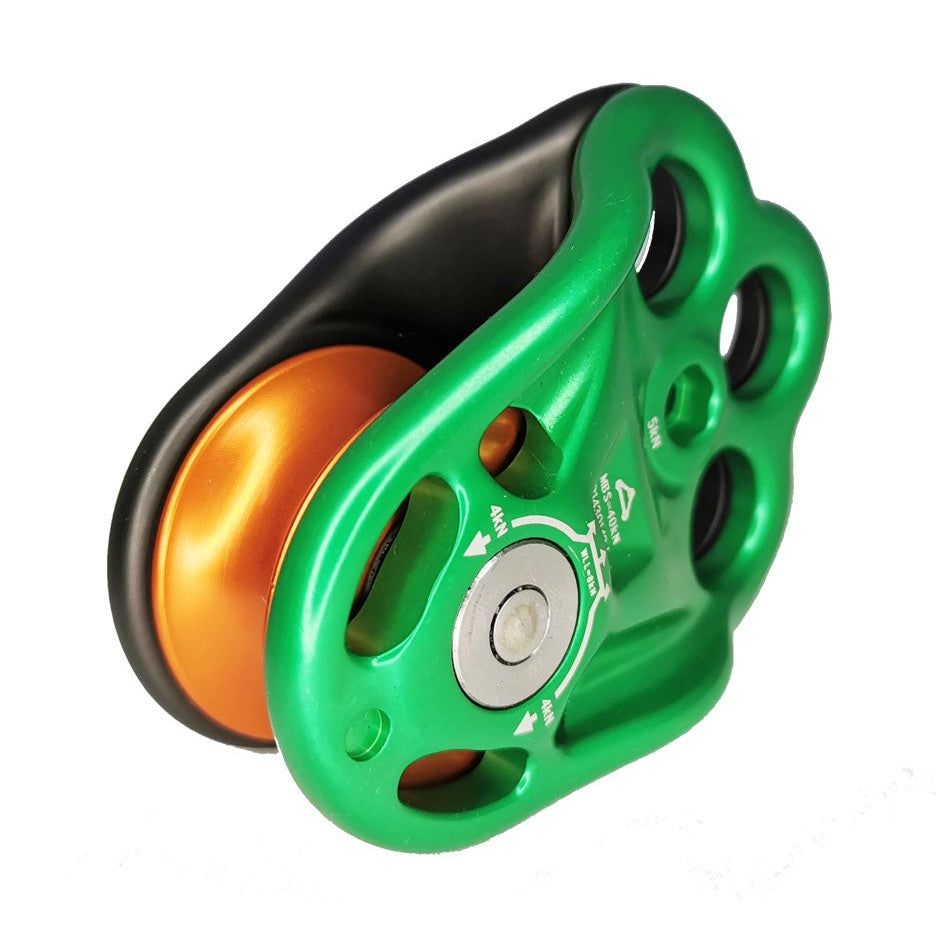

DMM Rigger Triple Attachment Pulley
or 4 interest-free payments with Paypal Pay in 4.
Limited Stock Available
An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM, the Rigger Pulley features a hot forged swing-cheek pulley with an in-built three-hole rigging plate. This design allows for creative configurations and enables direct connection to textile components, saving on weight and complication. The Rigger Pulley features a new axle construction achieved by using highly accurate CNC operations, producing a stronger axle/side plate interface for increased longevity.
Key Features:
- Ultra-High Strength Pulley Side Plates: Provides exceptional durability and strength.
- High Efficiency Roller Bearings: Ensures smooth operation and reliability.
- Hollow Axle: Reduces weight without compromising strength.
- Increased Rope-Bearing Cross-Section: Allows for textile attachments to the attachment holes.
- New Axle Design: Increases robustness of the axle/nut to side plate interface.
- Versatile Use: Can be used as a rig plate with or without the sheave.
Specifications:
- MBS (Minimum Breaking Strength): 40 kN
- WLL (Working Load Limit): 8 kN
- Dimensions: 68 x 94 mm
- Weight: 176 g
- Rope Diameter: 7-14 mm
- Sheave Diameter: 42 mm
- Colour: Green/Grey
- Certifications: EN12278:2007
The Rigger Pulley is designed to meet the demands of modern rigging with its advanced construction and high-strength materials. Its innovative design and robust features make it an essential tool for any rigging setup
