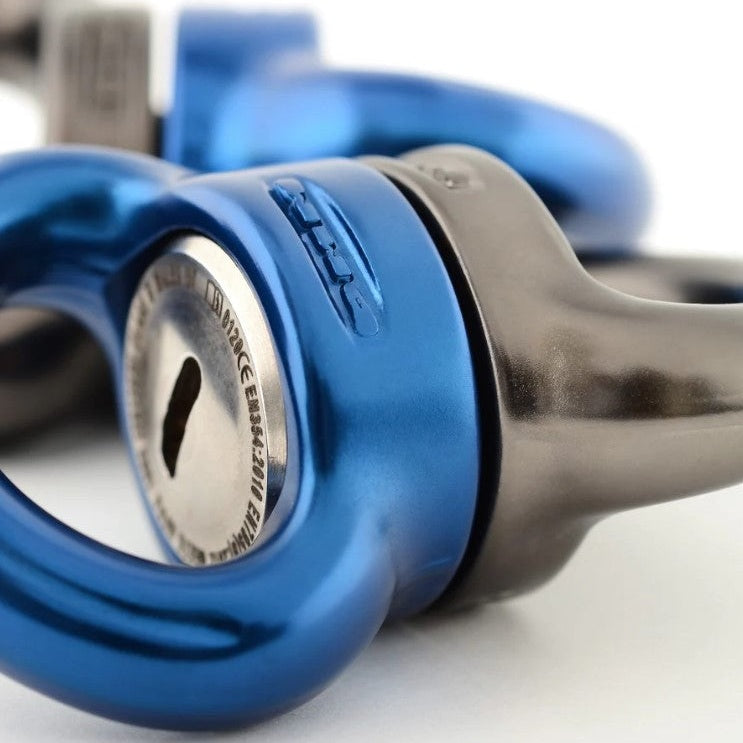

DMM Small Axis Swivel

Limited Stock Available

Axis Swivels have a compact and lightweight design, allowing for easy integration into your existing gear setup. The Small Axis Swivel can accommodate two connections on each eye.

Key Features:

• Compact and Lightweight: Easy to integrate into your gear setup.
• Versatile Connections: Small Axis Swivels accommodate two connections per eye
• Smooth Anodised Finish: Hot forged with a smooth anodised finish in titanium and blue colours.
• Textile Friendly: Suitable for a range of connection types, including carabiners, ropes, and webbing.
• High Durability: Perfect for tree care, rescue, and rigging industries.

Specifications:

• Material: Hot forged and CNC machined from heat-treated 7075 T6 Aluminium alloy.
• Axles: Stainless steel.
• Attachment Points: ‘Textile friendly’ with large radius.
• Large Axis Swivel: Large enough to allow a Locksafe carabiner gate to pass through.
• Breaking Strength (MBS): 36 kN (8,093 lbs).
• Working Load Limit (WLL): 7 kN (1,574 lbs).
• Dimensions: 80 x 50 x 33 mm.
• Weight: 117 g (4.6 oz).
• Efficiency: Compact size minimizes height loss in complex rigging scenarios and reduces carabiner side loading.
• Certifications: CE certified to EN795(b):1996, EN354:2002, and NFPA 1983 (06 ED) Class G.
• Corrosion Protection: Colour anodised to BS EN ISO 7599:2010 class 10 E1 sealed for corrosion protection and identification.

If you’re looking for a top-of-the-line swivel device that combines durability, functionality, and style, then look no further than the Axis Swivel.
