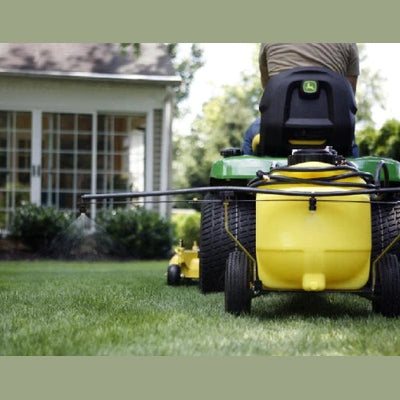

John Deere 56L Tow-behind Sprayer for Ride-on Mowers

The John Deere 56L Tow-behind Sprayer for Ride-on Mowers is especially suited for maintaining residential and small commercial properties. It provides an excellent way to apply spray material including liquid fertilizer, weed killer, tree spray, and de-icer. The 15gal (56L) Tow-Behind model comes complete with a 30" boom that sprays a 60" swath. It has two spray nozzles for precision pattern spraying. It comes equipped with a 19-foot hose and a spray wand for spot-spraying lawns, shrubs, trees, etc. The fully adjustable brass spray wand tip achieves streams up to 30 feet. The heavy-duty frame rolls smoothly on 4.10/3.50x4 pneumatic tires that minimize ground compaction and have a low profile, which maintains a low centre of gravity for excellent stability.

Features include:

• 100 psi Shurflo diaphragm-type pump is designed for high-hour commercial applications. It can also be run dry without damage.
• A handgun on a 19-foot hose with an adjustable spray pattern is helpful when spot-spraying
• A 35cm (14in) wand on the handgun is standard equipment to give added convenience when spraying trees.
• The fully adjustable brass spray wand tip achieves streams up to 30 feet
• High performance boom spray tips for precision pattern spraying
• Check valves in boom tips to prevent siphoning and dripping, which can cause lawn spotting.
• Two-wire fused wiring harness complete with quick disconnects for convenient electrical hookup.
• Control valve directs flow to either the boom or spray wand.
• Rugged translucent yellow tank with molded fill level indicators (in gallons).
• Built-in supports for convenient vertical storage.
• Heavy-duty powder coated frame rolls smoothly on pneumatic tires that minimize ground compaction.

Advantages of using liquid fertilizer over dry fertilizer:

• Fertilizer is more readily available to plants.
• The fertilizer doesn’t need be worked into the soil by watering or rain before it will work.
• Herbicides are more effective when applied with liquid fertilizer.

NOTE: Sprayers are compatible with competitive tractors (if equipped with a 12-V battery and charging system). For use on all John Deere Ride-on Lawn tractors and mowers

NOTE: Use these sprayers with liquid-base lawn care chemicals only. They are not recommended for wettable powders as no agitating system is provided to prevent particles from separating out.

NOTE: X700 Series mowers will also require AM105666 wiring harness extension (sold separately)
