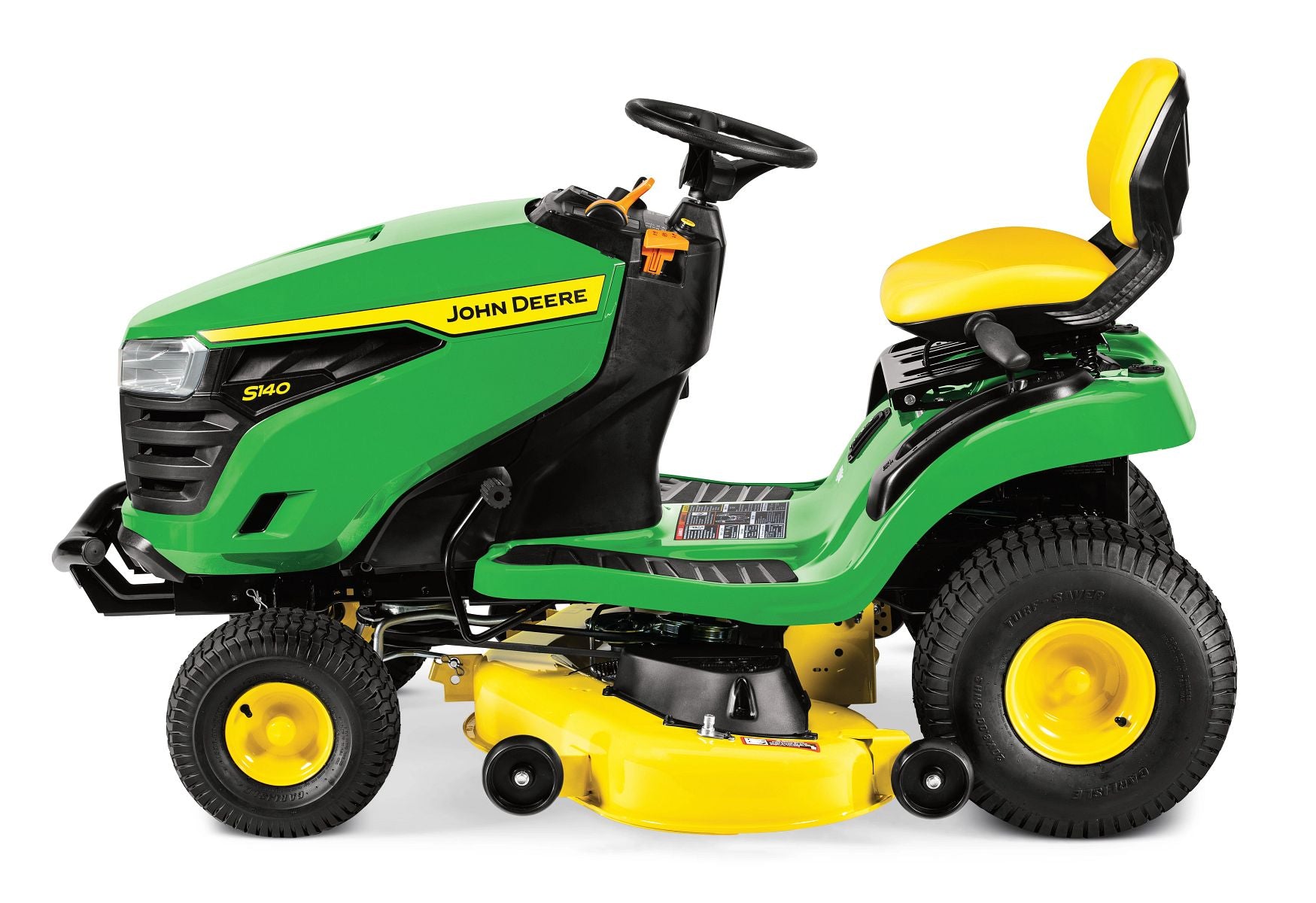

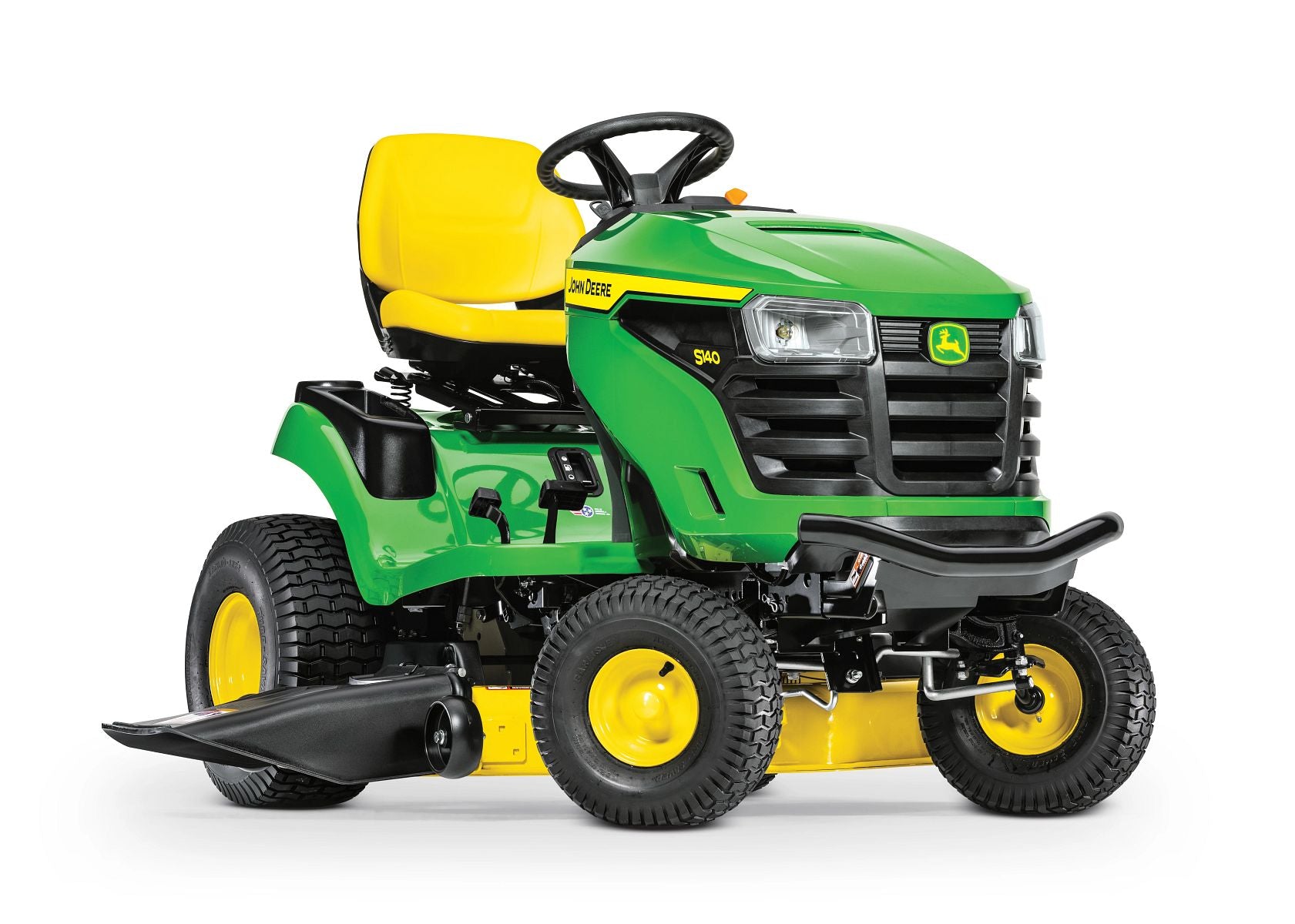

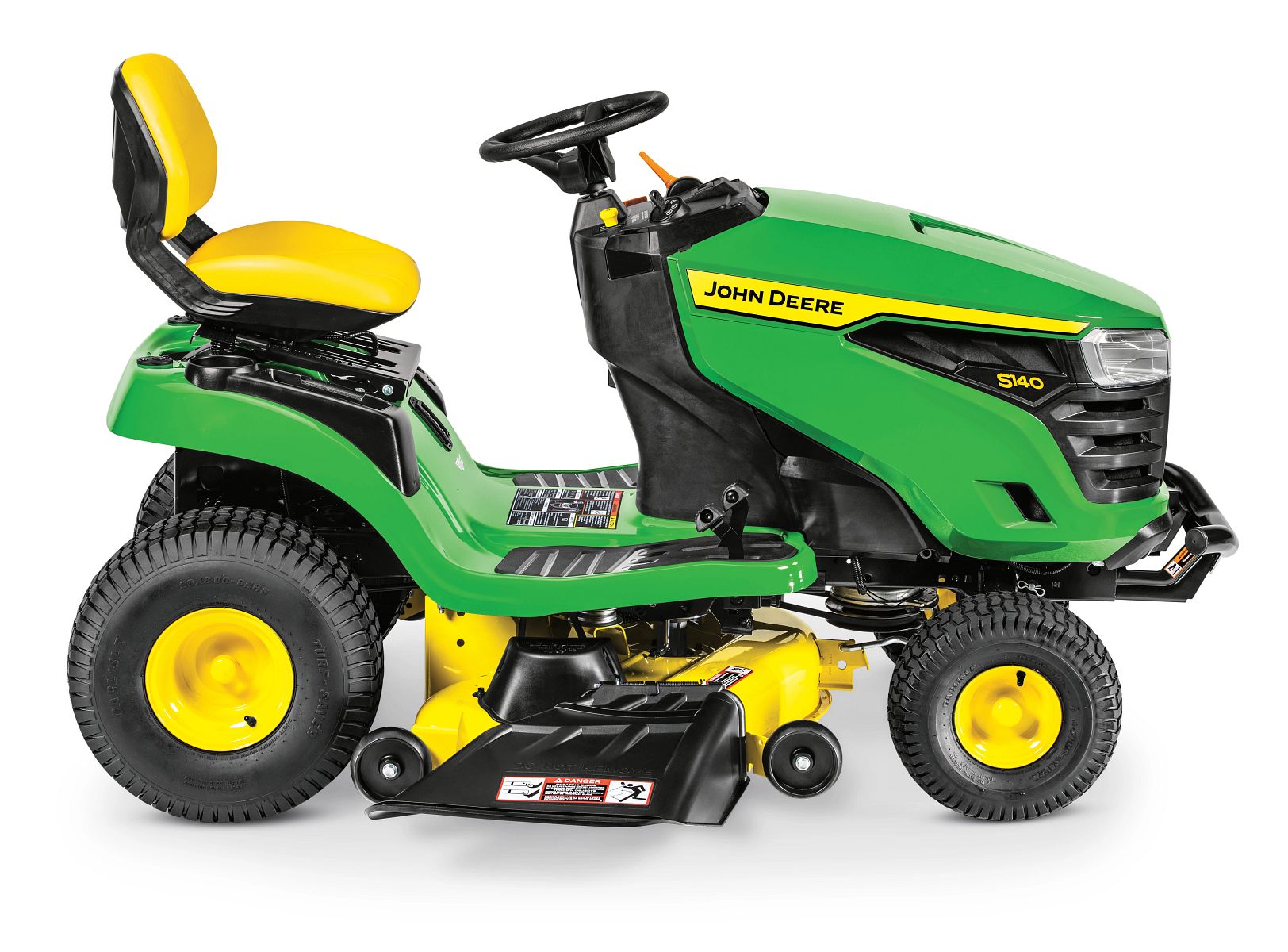

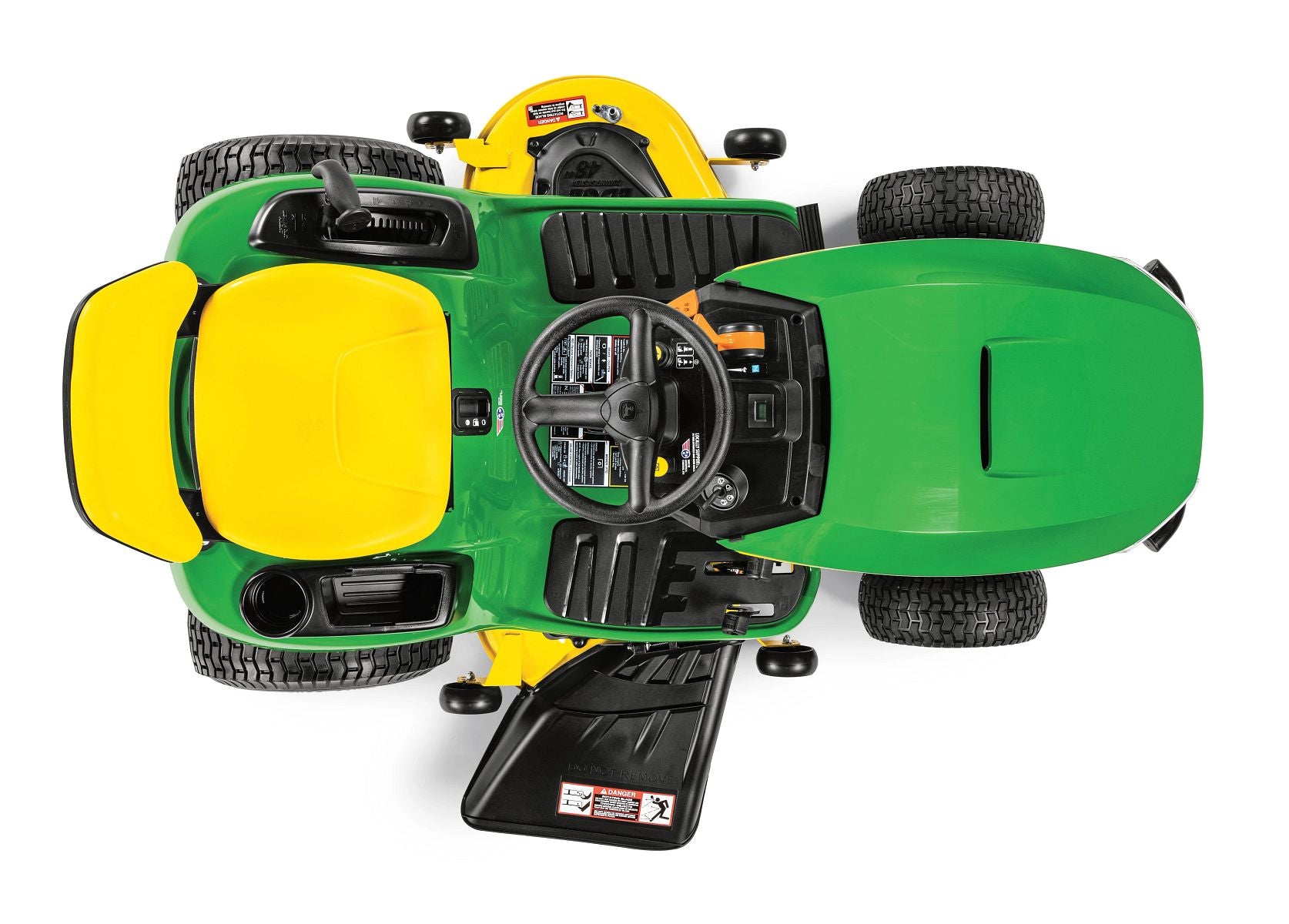

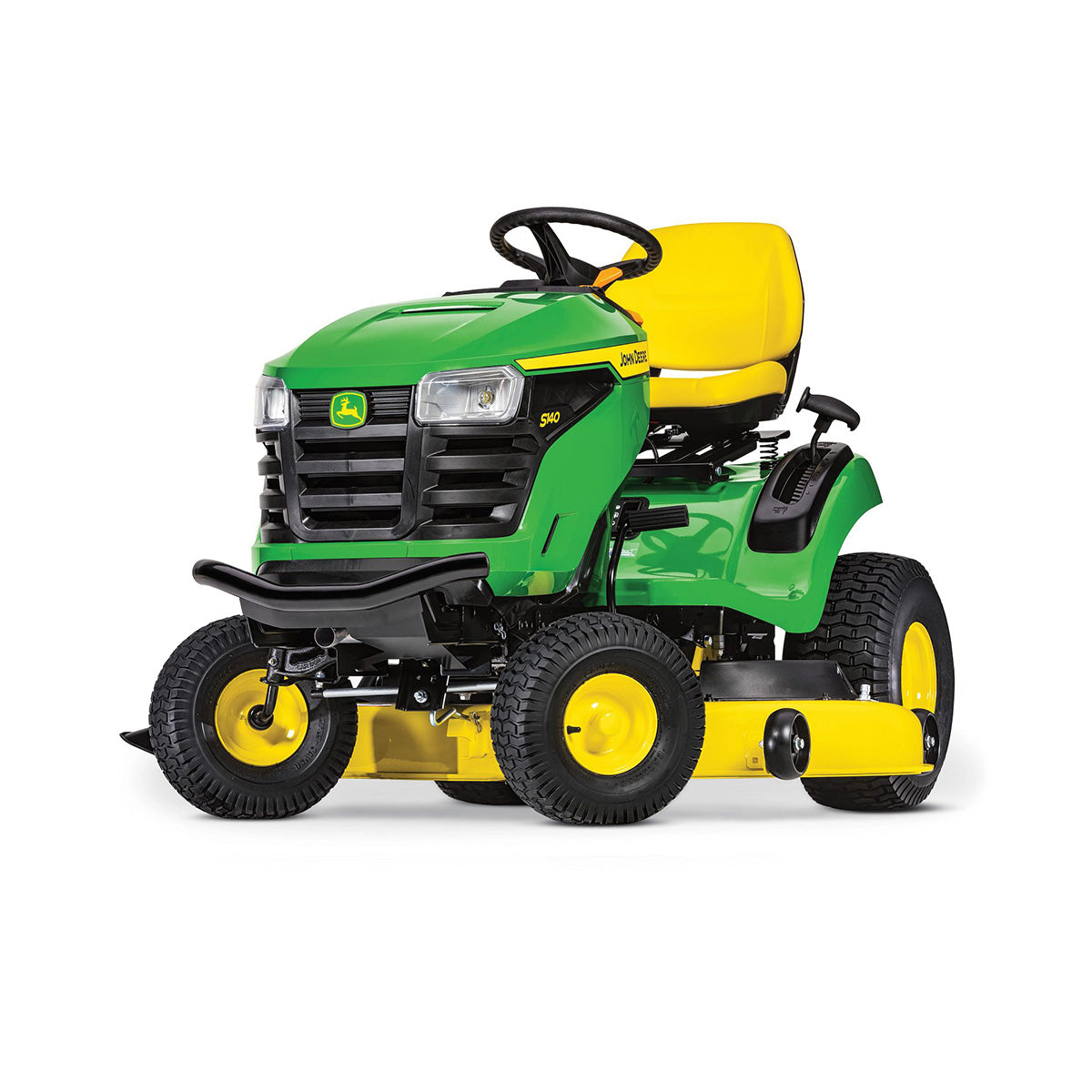

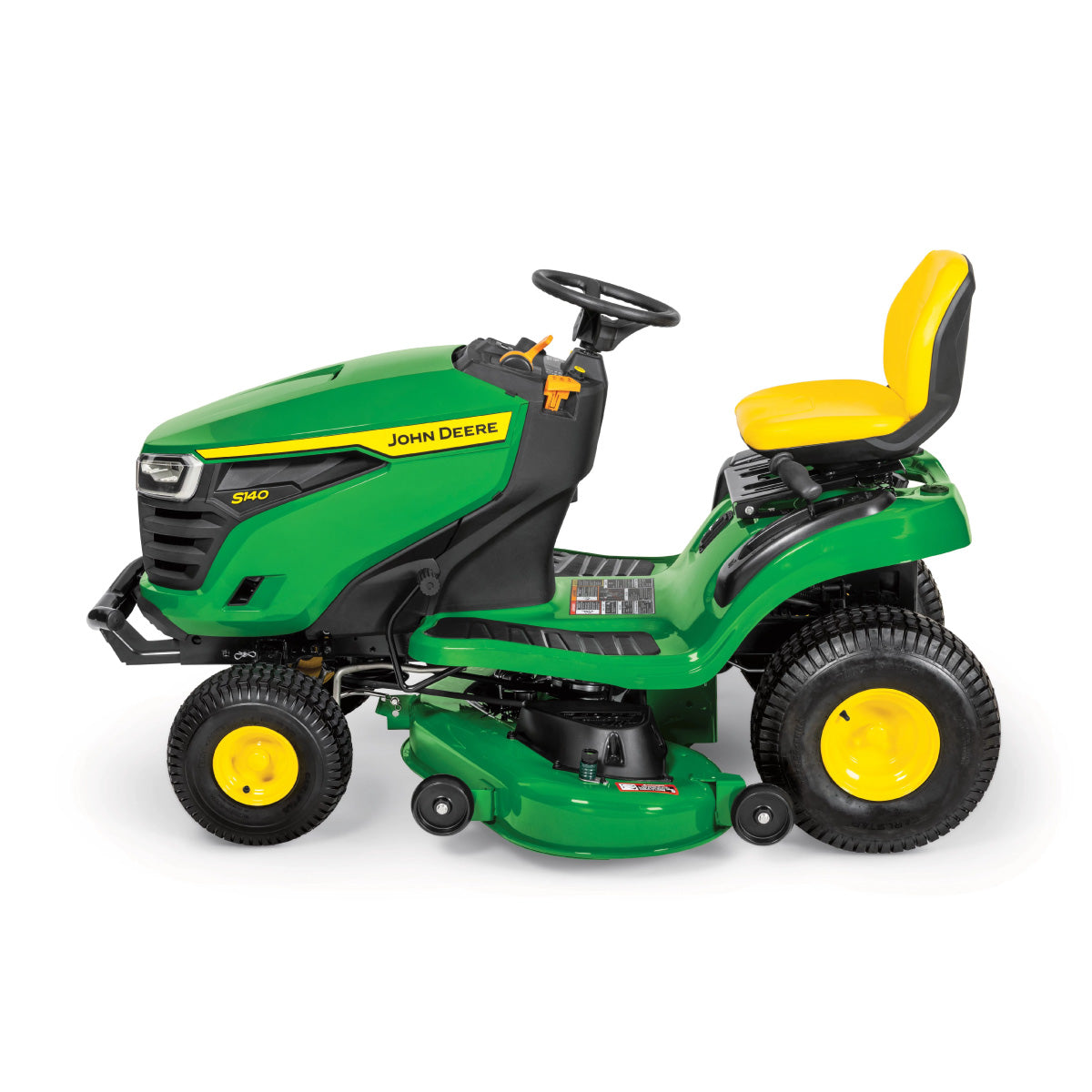

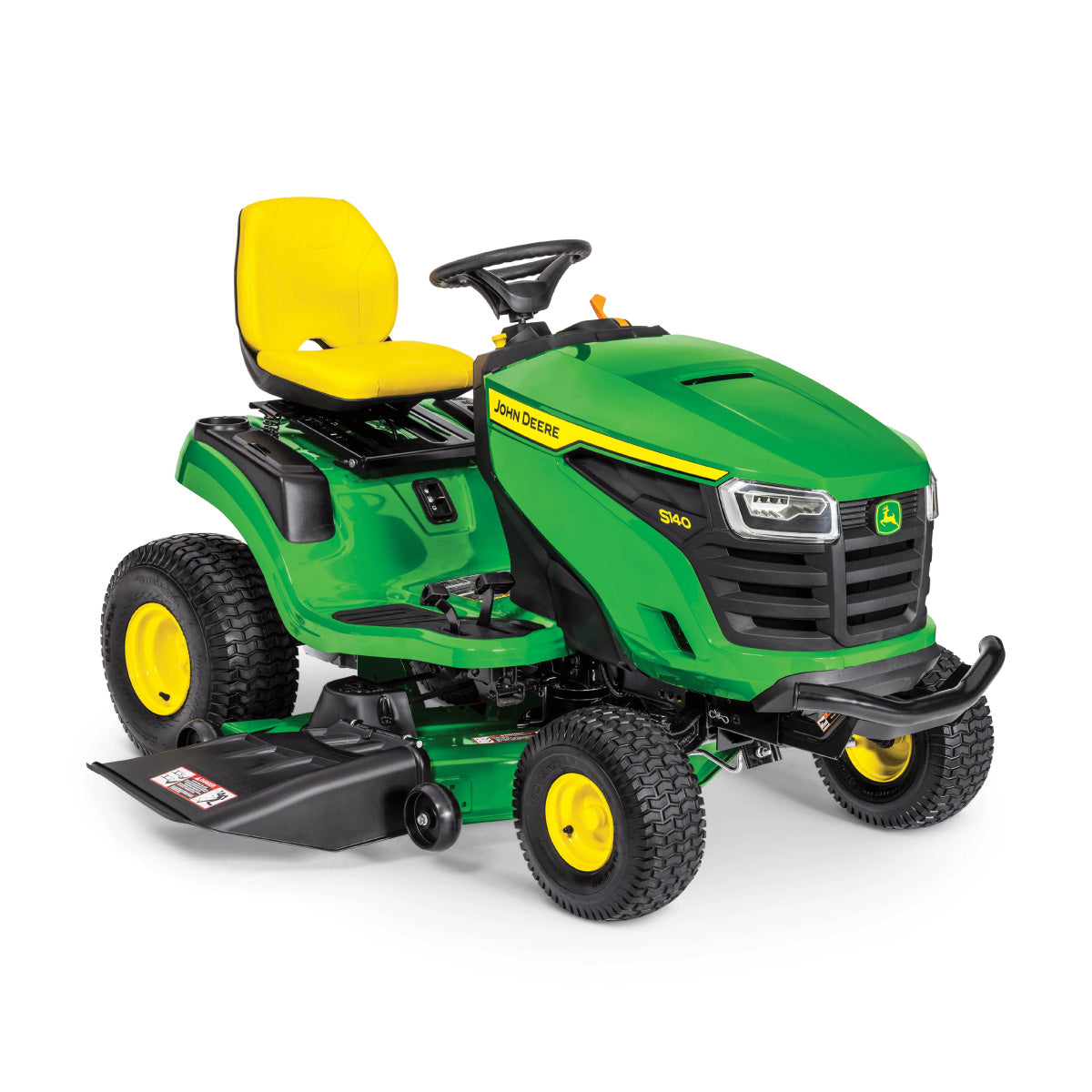

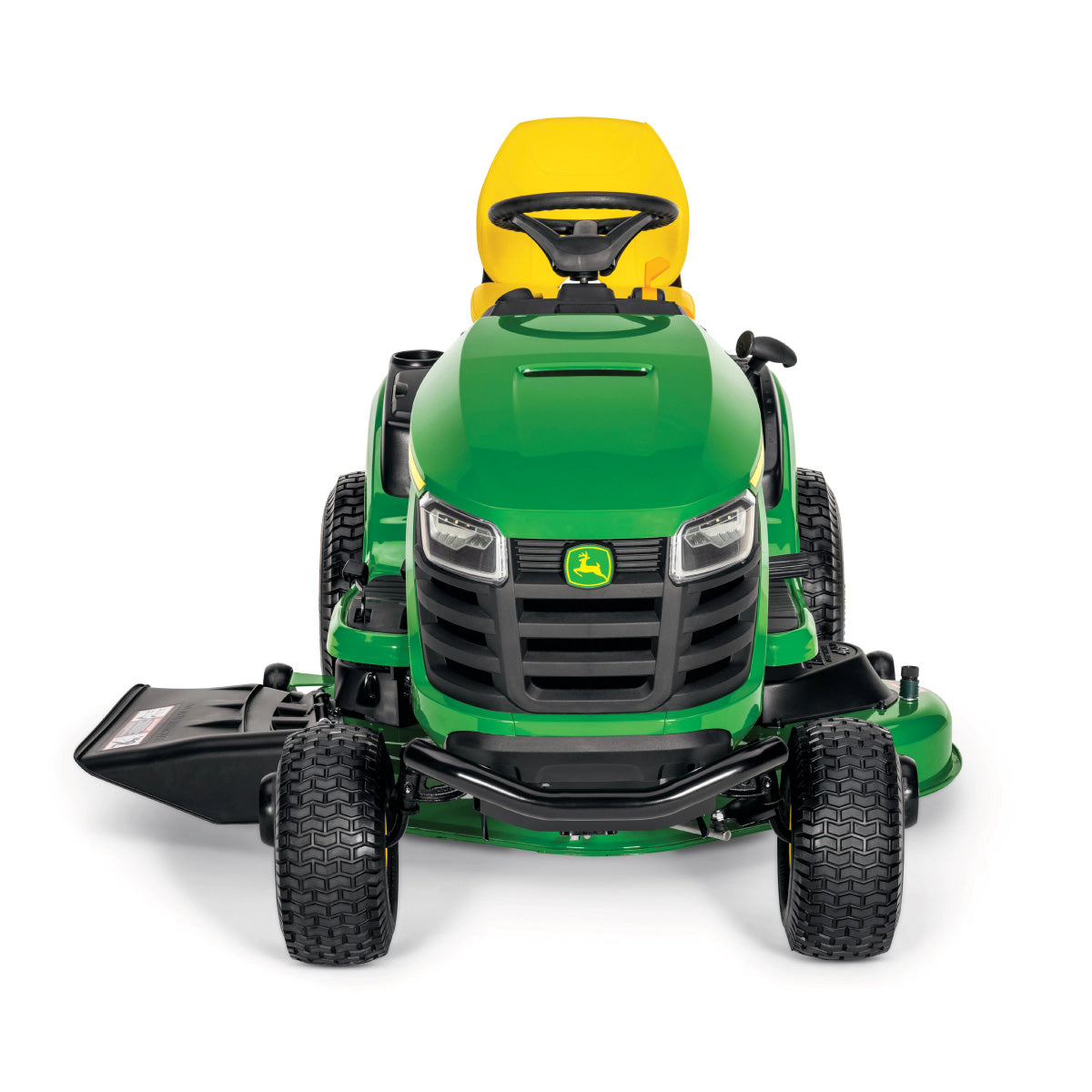

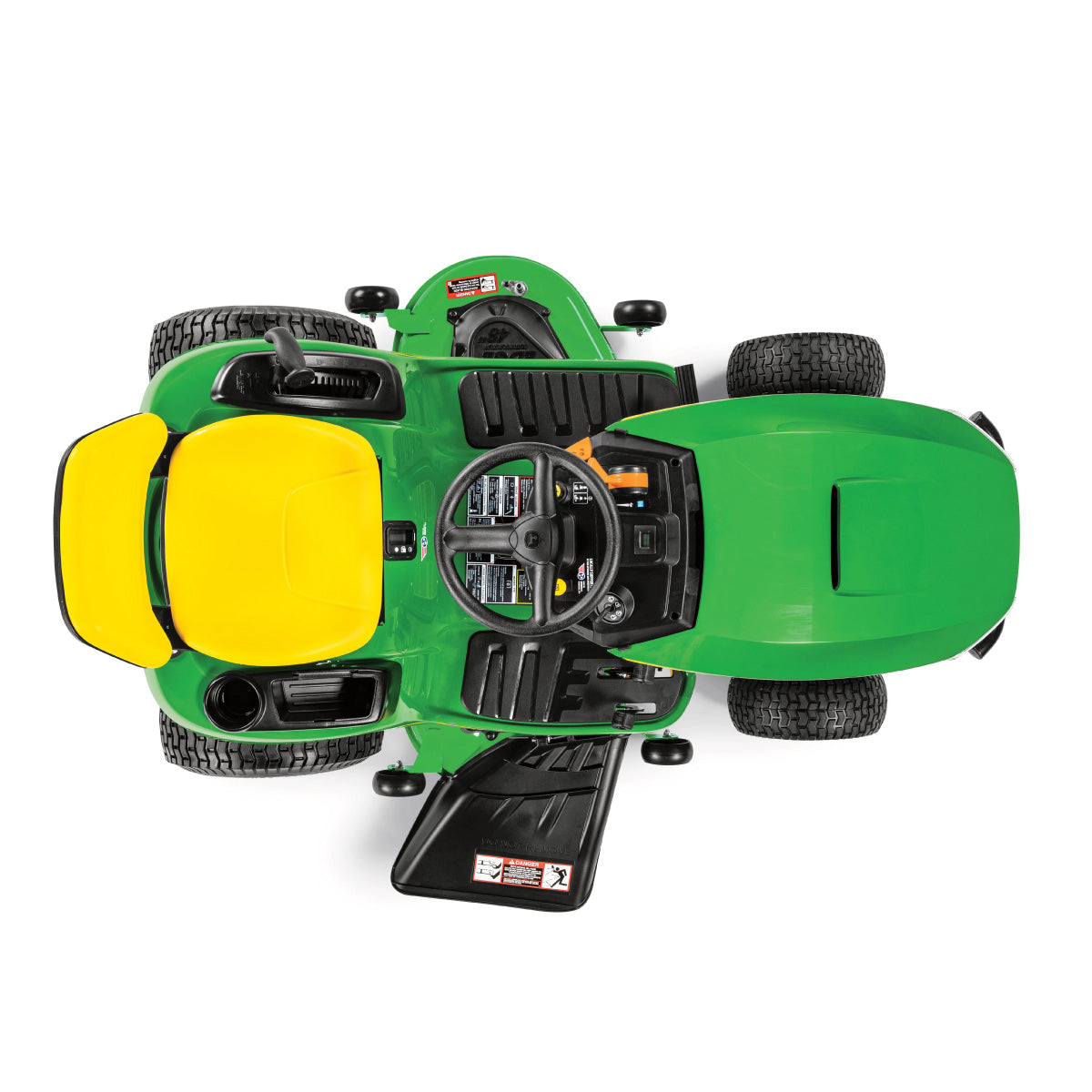

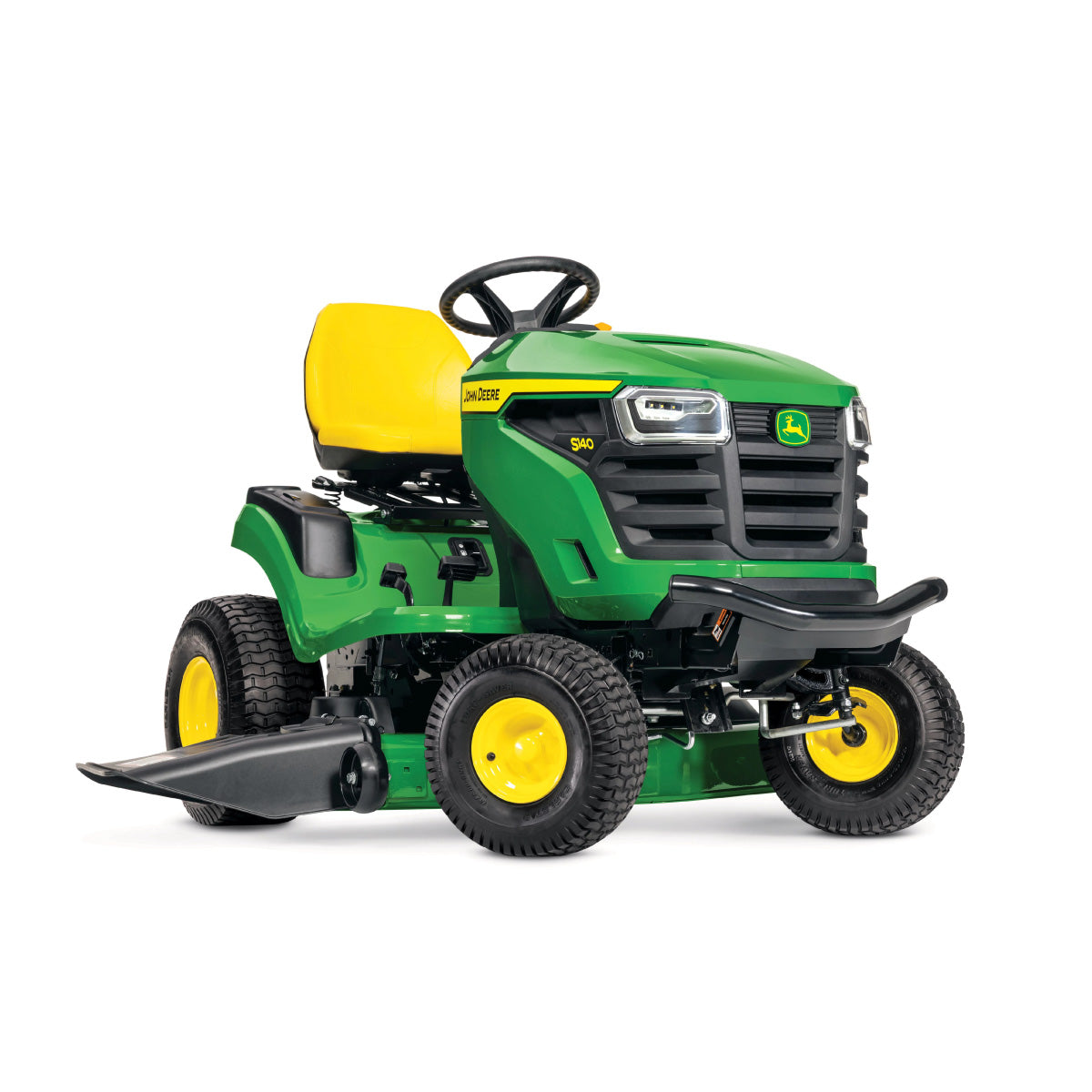

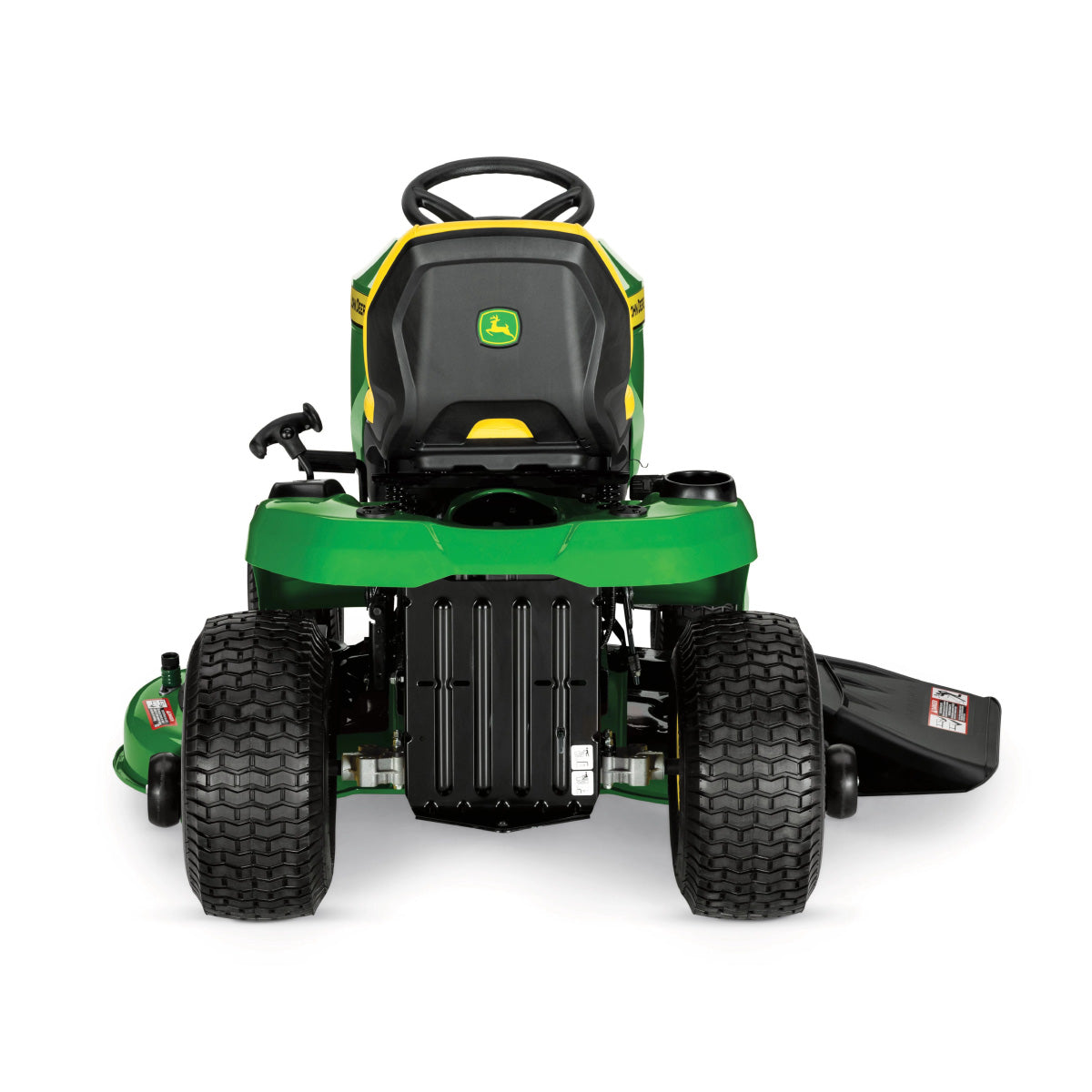

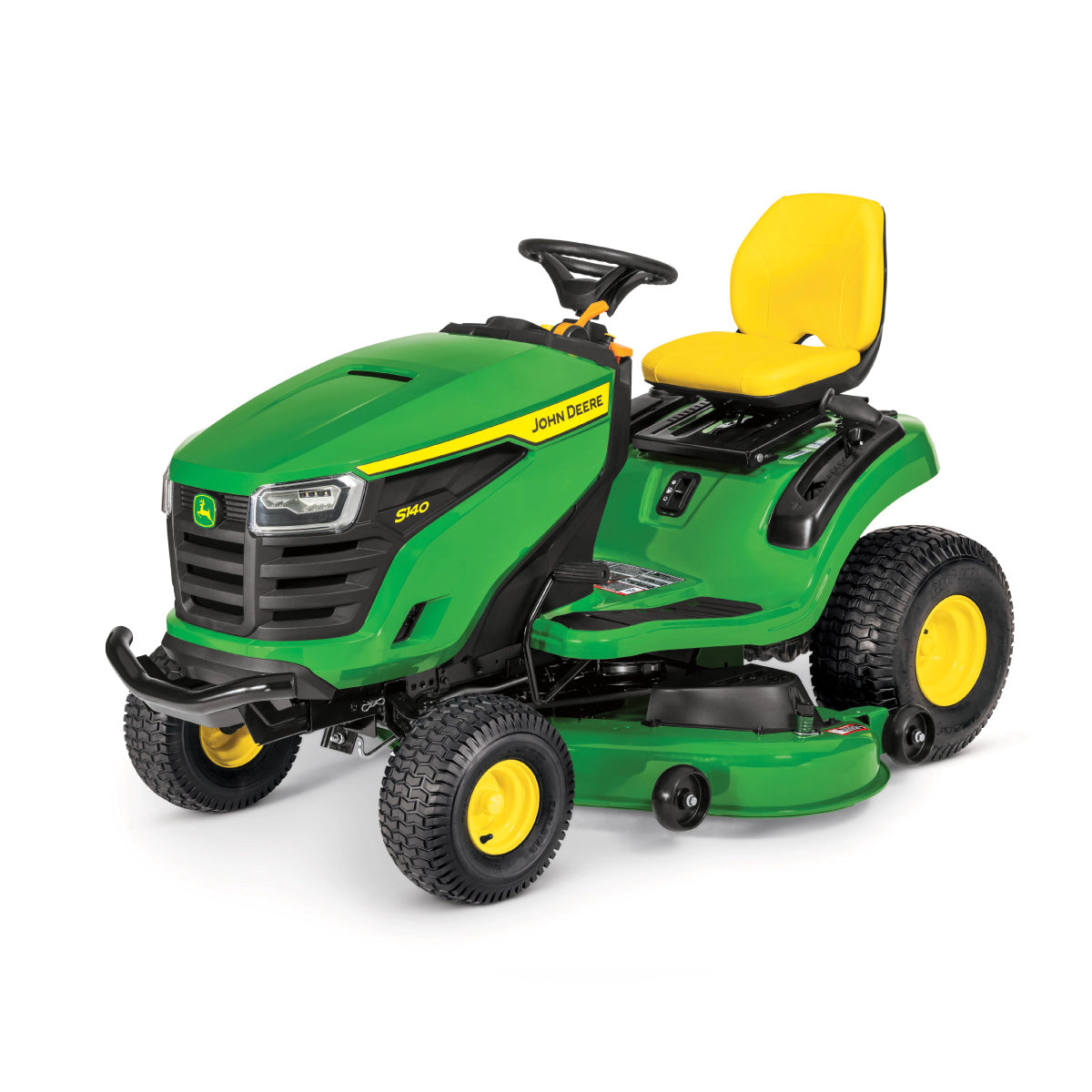

John Deere S140 22HP 48" Ride-on Mower

The 100 Series Ride-on Mowers combine strength and reliability with yard-friendly simplicity, comfort and control. With a choice of models and a wide range of features and options to choose from, the 100 Series has something for everyone. These robust ride-on mowers are engineered for years of trouble-free service and combine superb cut quality with outstanding ease of use.

The John Deere S140 riding lawn tractor is the most affordable 48-inch deck model of the 100 Series line up. The 22-HP, V-Twin John Deere engine has plenty of power to handle tough mulching, mowing and bagging conditions (coverage up to 2 acres). The ride is comfortable. It features a hydrostatic transmission, side-by-side foot pedals, enhanced styling, adjustable controls, 15-in heat-resistant open back seat and a front bumper. The 48-inch Edge™ Cutting System is also time-tested and proven to offer superior cut quality and can be easily equipped to bag or mulch.

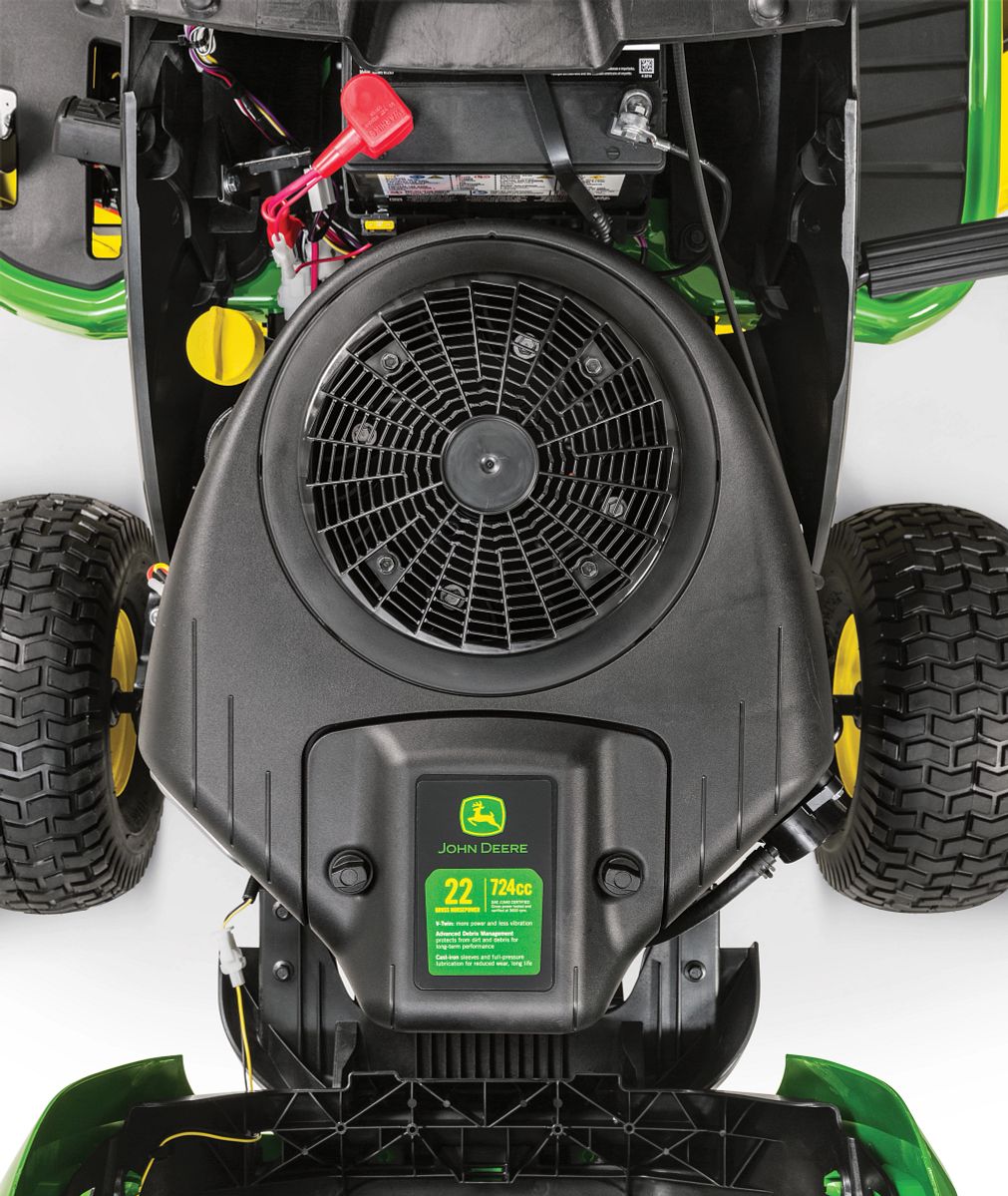

Powerful V-twin engine features full-pressure lubrication for dependability and long life

• A 16kW (22-hp) V-twin engine provides plenty of power and torque to handle tough mowing, mulching, and bagging.
• V-twin cylinder design for greater torque, lower vibration, and improved sound quality
• Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
• No-tools oil drain system for servicing convenience

Frame made of full-length welded steel for reliability

• Frame made of full-length welded steel for reliability
  The solid one-piece frame is constructed of 12-gauge, 2.66-mm (0.105-in.) steel
• Cast-iron front axle will not bend
• Front bumper protects the tractor
• The front bumper is included on the S130 and S140. It is available as an optional attachment for the S100, S110, and S120.
• The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

Hydrostatic transmission gives an infinite choice of ground speeds

• A Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel.
• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.
• Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability.
• Tuff Torq TLT200 – S100, S110, S120, S130 and S140

Operator station designed for comfortable operation

• The operator station is designed for operator comfort and easy operation.
• Controls are easy to see and use.
• Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort.

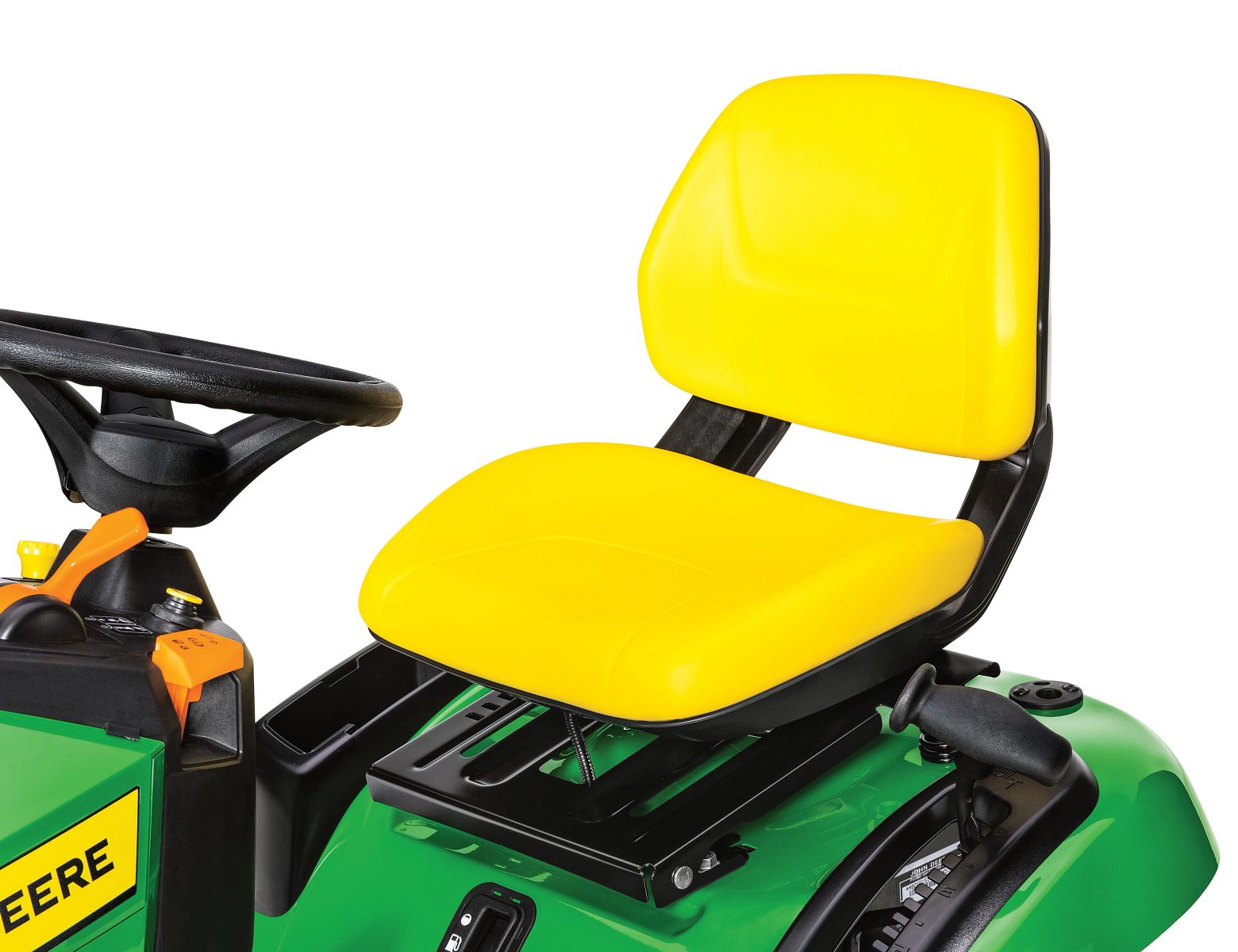

• Operator comfort is enhanced with a 38-cm (15-in.) high-back, two-piece seat with an open back:
• The open-back seat design keeps the operator cooler. Especially helpful when operating the tractor for extended periods of time
• Easily adjusted forward or rearward while in the seat
• Seat travel of 14 cm (5.5 in.) and 10 different positions to adjust for operator height.

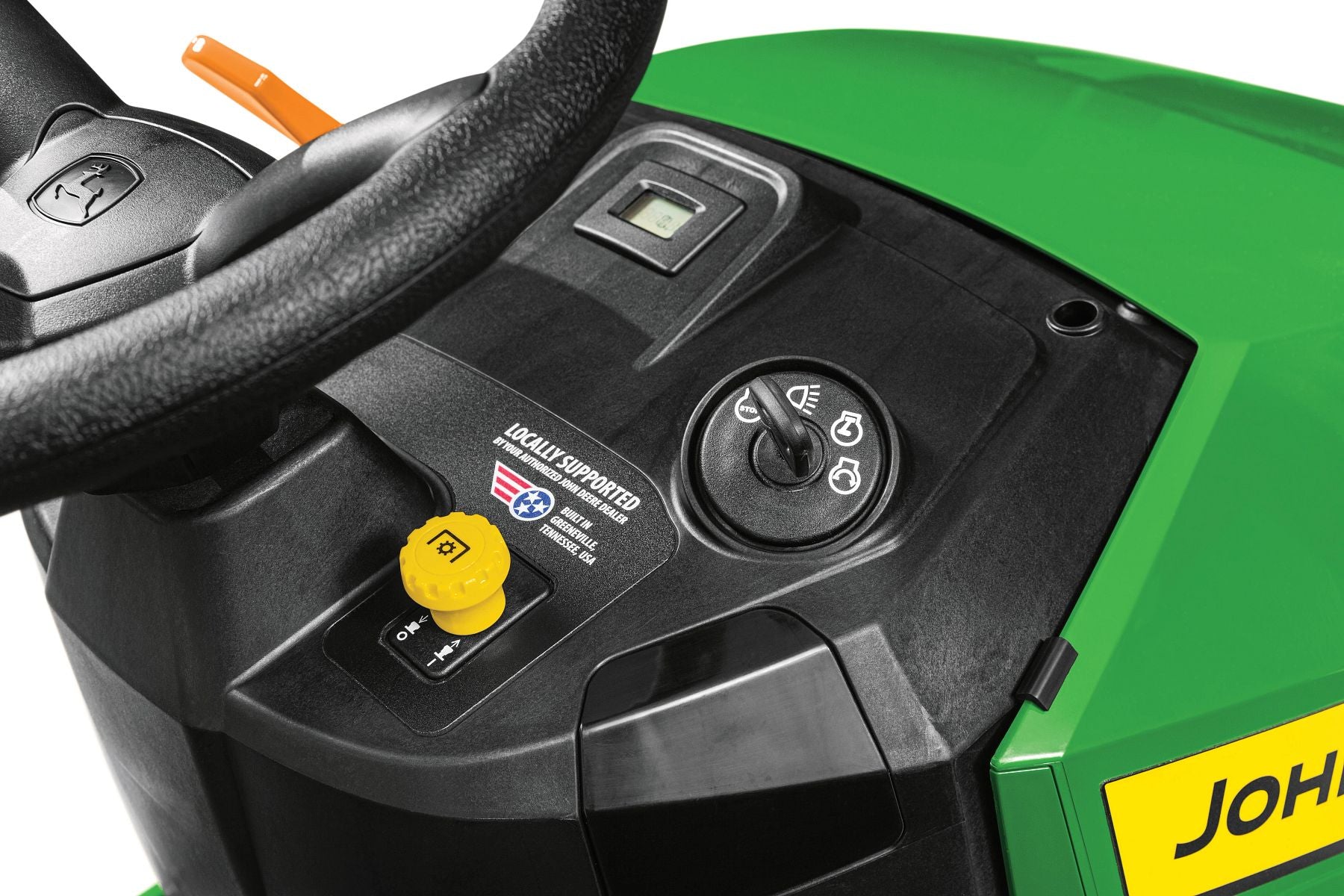

Instruments and controls are easy to find and convenient to use

• The contoured dash has clean, attractive styling.
• Side-by-side transmission control pedals. Side-by-side foot pedals control the speed and direction of travel.
• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.
• Mower deck height adjustment
• A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height.
• Parking brake control. The parking brake control is conveniently located for easy access. It holds the brake pedal securely in the locked position.

Serviceability is convenient with an easy-open hood

• The one-piece hood opens easily to permit checking and servicing the engine:
• Important service points are located within easy reach.
• A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
• The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.
• The seat tilts up and out of the way to make adding fuel easy.
• Hood will not rust or dent, and includes quality headlights.

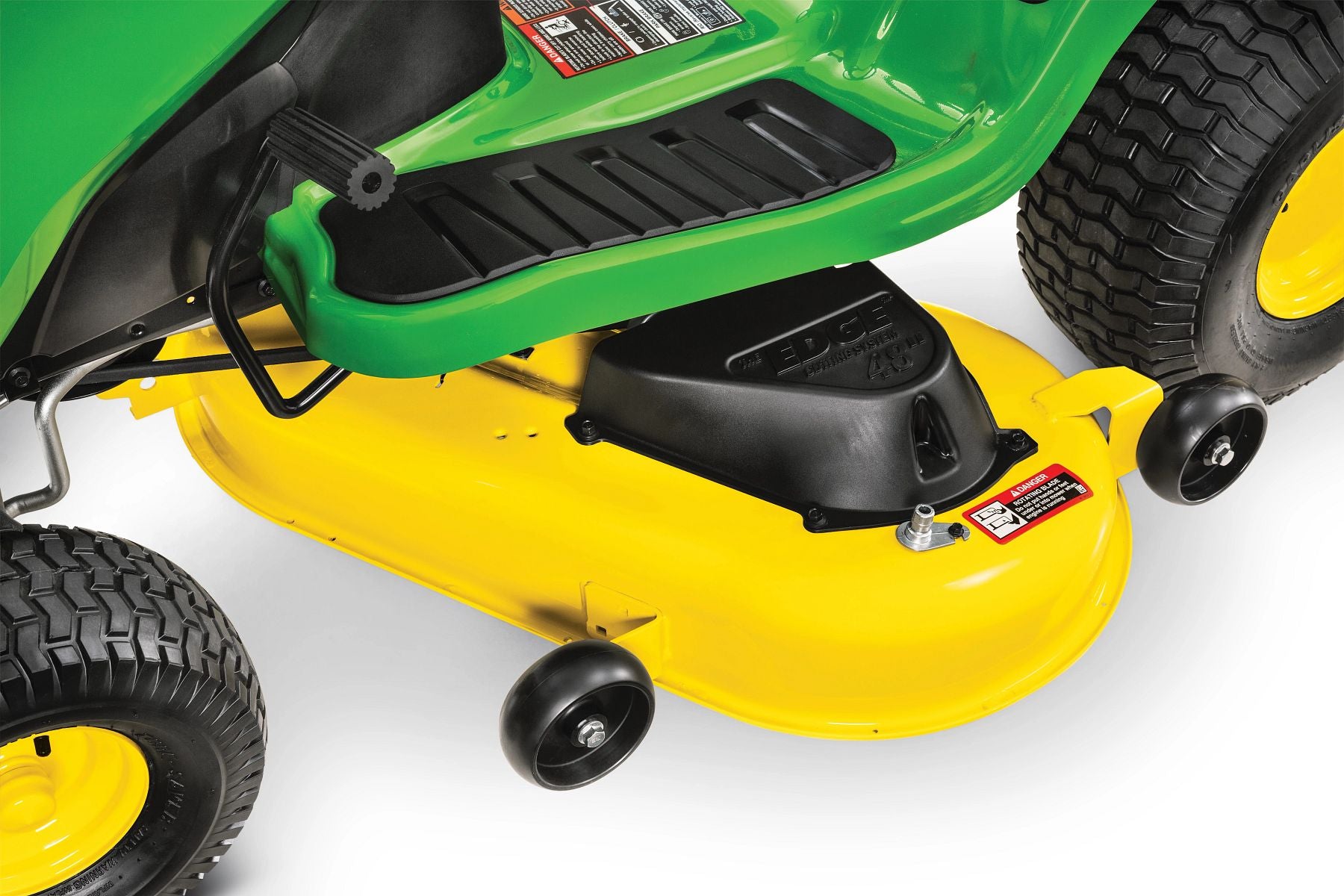

The Edge™ cutting system gives superior performance

• The Edge cutting system has been trademarked to emphasise the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability.
• The 122-cm (48-in) Edge Mower Deck is a three-spindle design with heavy-duty characteristics:
• The 12-gauge, 2.7-mm (0.105-in.) steel deck provides years of dependable mowing.
• Included three-in-one blades work well for side-discharge, mulching, or bagging.
• The blade-to-spindle design provides a unique mounting system for the mower blade that gives extra safety and convenience.
• StarLock™ blade design. The StarLock blade design keeps the blade bolt at the correct torque for easy removal.
• Optional blades for difficult mulching or bagging conditions are available.
• A cut-and-throw, 229-L (6.5-bu) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.

Two-year or 120-hour bumper-to-bumper warranty is included

An exclusive 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.

Note: Photos are for illustrative purposes only, deck colours and other features may vary between green and yellow.
