Silvan 100L Redline 12 Volt Spotpak Sprayer
or 4 interest-free payments with Paypal Pay in 4.
The Redline range of 12V sprayers are the most feature packed economical sprayers in Australia. Ideal for weed control, spot, and fenceline spraying, they fit neatly onto the back of most quad bikes, UTV’s and utility-style vehicles.

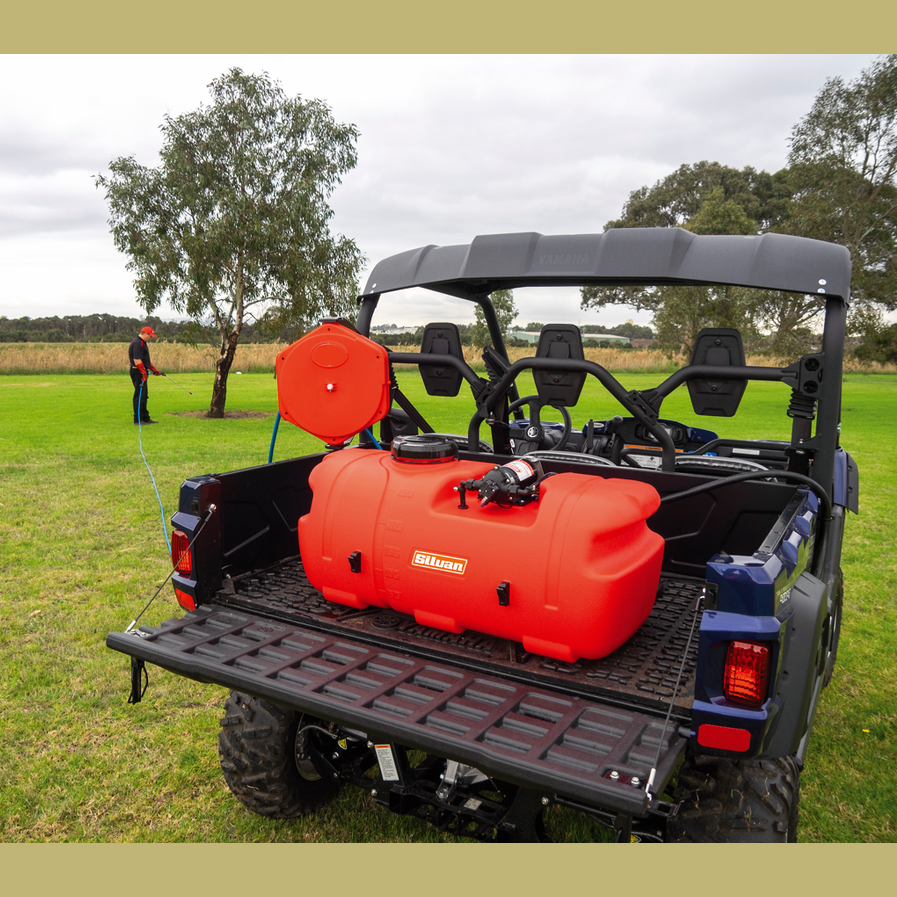

The 100L Redline 12 Volt Spotpak Sprayer from Silvan fits neatly into the back of most Gators and other side-by-sides as well as 4-wheeler or quad-bike racks.
TANK: 100L blow-moulded, impact-resistant tank (UV stabilized polyethylene) with 170mm screw-on lid retainer ring to prevent accidental loss and anti-spill breather. An Integrated Pump and battery cover for protection against accidental damage. A 25mm drain bung for easy cleaning. Bottom tank mount inserts (4 x M6) for strapless mounting to trailer or tray.
PUMP: A 12V on-demand electric pump provides 5.3 L/min of open flow at up to 60psi. The demand switch automatically starts the pump when the pressure falls below 45psi and stops the pump when the pressure reaches 60 psi.
POWER CONNECTION: The 3m quick-release wiring harness with alligator clips allows the sprayer to be connected to almost any charged 12v battery with ease, while the inline switch allows the unit to be turned on and off without disconnecting it from the battery.
OTHER: This kit also includes a 550mm spray gun lance with an adjustable cone nozzle and spray shield to reduce drift. The lance clips easily to the tank and comes with 6 metres of 8mm delivery hose.
Features:
- 100L Impact-resistant polyethylene tank.
- Screw on 170mm lid with anchor strap and anti-spill breather, 25mm drain plug, M6 threaded mounting inserts in the base.
- 5.3 L/min open flow, Max 4 Bar (60psi) on-demand electric pressure switch.
- The demand switch automatically starts the pump when the pressure falls below 40 psi and stops the pump when the pressure reaches 45 psi. On/Off power switch.
- Trigger jet gun assembly with 550mm long stainless-steel lance with adjustable nozzle.
- 6m x 8mm ID spray delivery hose.
- Includes spray shield to reduce drift, chemical measuring jug, spray lance holder clips & internal suction filter.
Specifications:
- Tank Capacity: 100L
- Pump: Silvan 12V chemical-resistant diaphragm pump (382-168)
- Pump Flow: 5.3L/min open flow.
- Max Pressure: 60psi (4 Bar)
- Dry Weight: 9kg
- Product Dimensions: 89cm L x 47cm H x 44cm W
- Warranty: 12 Months
Please note: Refer to your vehicle or tractor manufacturer’s instructions for appropriate load, towing limits and fitting positions. Some assembly is required.
