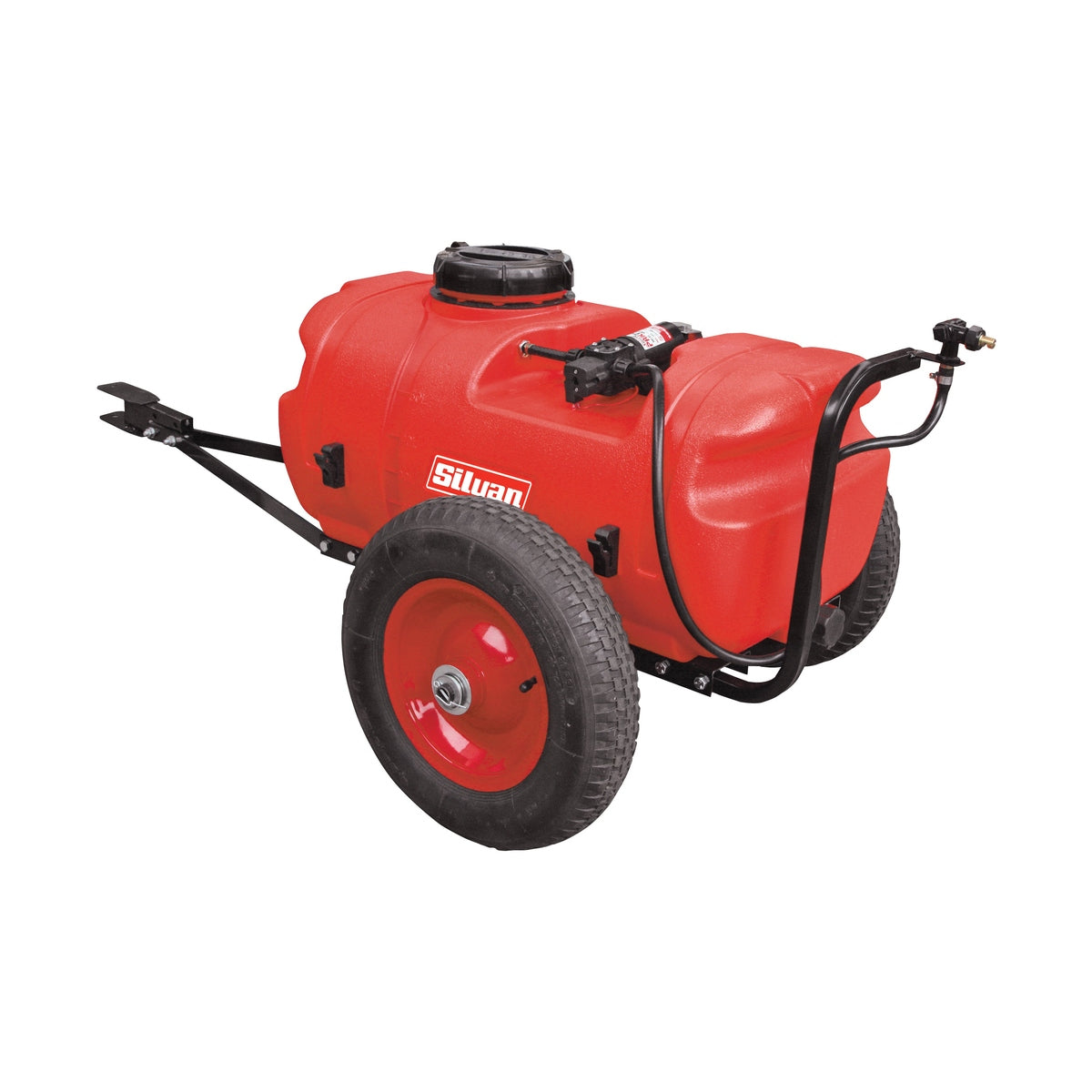

Silvan 55L Redline 12 Volt Spotpak Sprayer With Trailer and Boomless Nozzle Kit

The 55L Redline 12 Volt Spotpak Sprayer from Silvan is the most feature packed economical sprayer in Australia. It’s ideal for weed control, spot and fence line spraying in small acreage situations. This bundle-n-save Redline trailer sprayer kit includes:

• 1 x SP55-R1 55L Redline 12V Sprayer
• 1 x TR55 Trailer Kit for 55L Redline
• 1 x TR55-10 Boomless Nozzle Kit

SP55-R1 Redline 12V Sprayer

TANK: 55L blow-moulded, impact-resistant tank (UV stabilised polyethylene) with 170mm screw-on lid retainer ring to prevent accidental loss and anti-spill breather. An Integrated Pump and battery cover for protection against accidental damage. A 25mm drain bung for easy cleaning. Bottom tank mount inserts (4 x M6) for strapless mounting to trailer or tray.

PUMP: A 12V on-demand electric pump provides 2.6 L/min of open flow at up to 50psi. The demand switch automatically starts the pump when the pressure falls below 40psi and stops the pump when the pressure reaches 50 psi.

POWER CONNECTION: The 3m quick-release wiring harness with alligator clips allows the sprayer to be connected to almost any charged 12v battery with ease, while the inline switch allows the unit to be turned on and off without disconnecting it from the battery.

 Features:

• 55L Impact-resistant polyethylene tank
• Screw on 170mm lid with anchor strap and anti-spill breather, 25mm drain plug, M6 threaded mounting inserts in base
• 2.6 L/min open flow, Max 3.3 Bar (50psi) on demand electric pressure switch
• The demand switch automatically starts the pump when the pressure falls below 40 psi and stops the pump when the pressure reaches 45 psi. On/Off power switch.
• Trigger jet gun assembly with 550mm long stainless-steel lance with adjustable nozzle
• 6m x 8mm ID hose
• Spray shield to reduce drift, chemical measuring jug, spray lance holder clips & internal suction filter.

Specifications:

• Tank Size: 55L
• Pump Flow: 2.6L/min
• Max Pressure: 50psi
• Product Weight: 5.4kg
• Product Dimensions: 72cm L x 36cm H x 43cm W
• Warranty: 12 Months

TR55 Trailer Kit for 55L Redline

Converts a 55L Redline sprayer into a trailer-mounted sprayer for spraying larger areas with ride-on mowers.

Specifications:

• Frame: Powder coated Steel frame with adjustable double tongue hitch
• Wheels: Pneumatic 16" x 4.8"

TR55-10 Boomless Nozzle Kit

The boomless nozzle kit for the 55L Redline is fitted with a Teejet TK-4 brass nozzle and mounted in a swivel nozzle holder. The nozzle sprays a width of approximately 2m and the application rate is controlled by varying the speed of towing vehicle. The pump is matched to the nozzle and the pump pressure is fixed and not adjustable.

Specifications :

• Max spray width: 2m
• Suits: 55L Redline 12V Sprayer

Please note: Refer to vehicle or tractor manufacturer’s instructions for appropriate load, towing limits and fitting positions. Some assembly is required.
