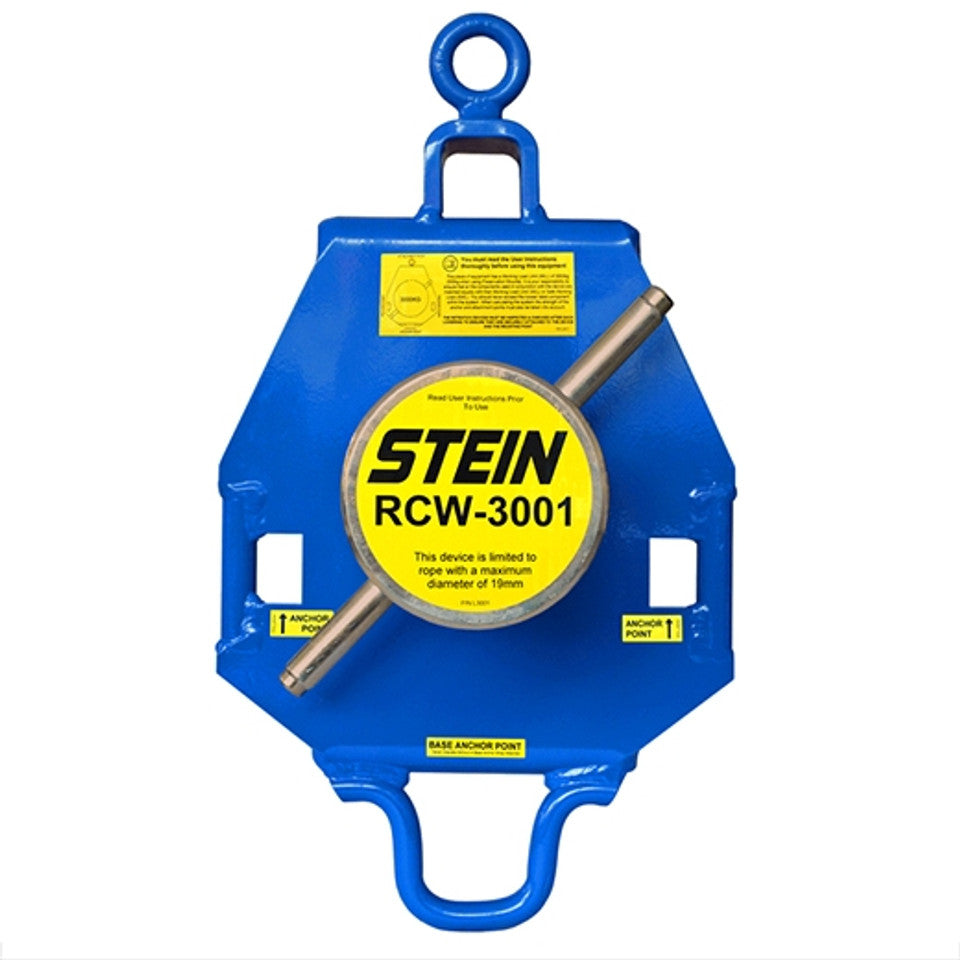

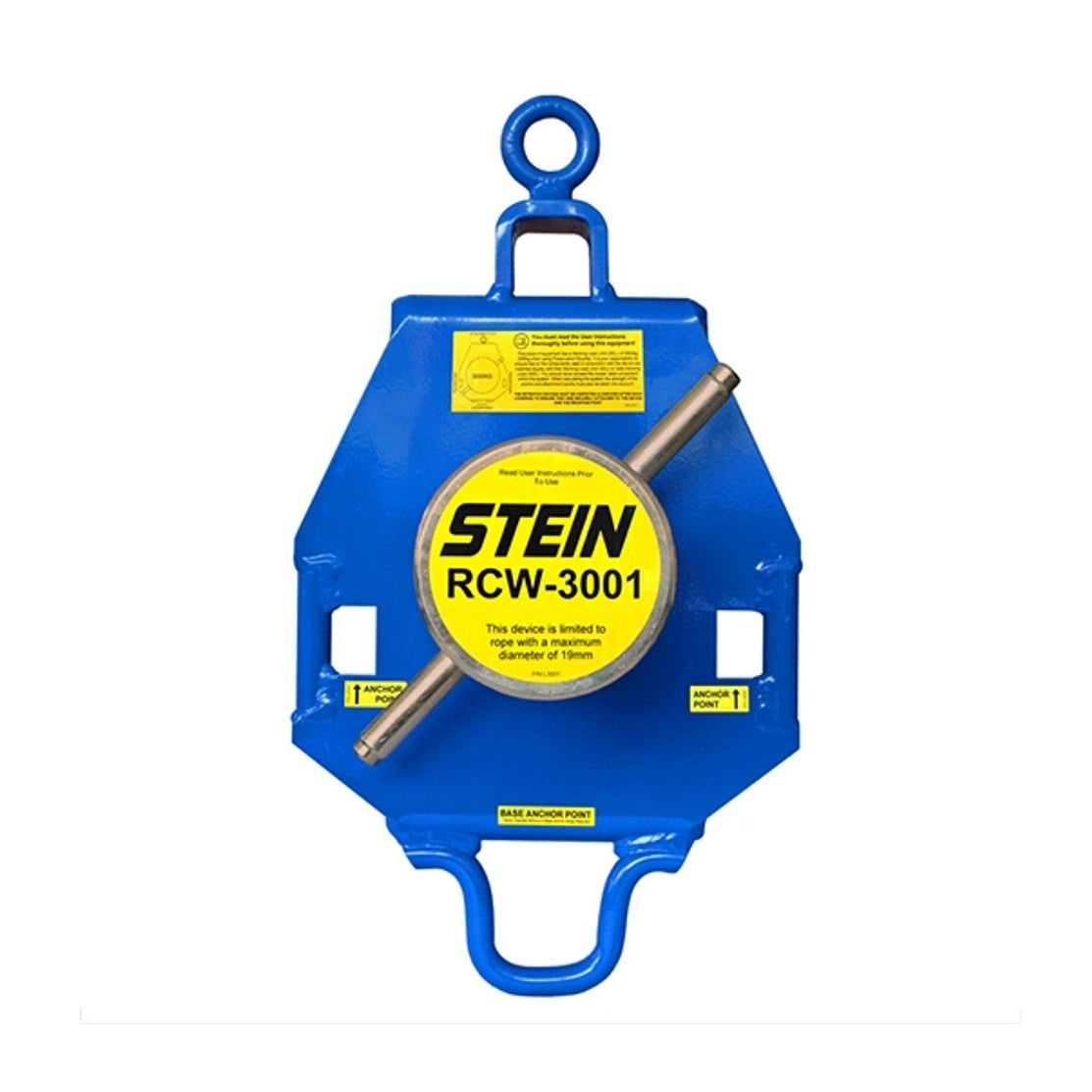

Stein Lowering Rigging Device

Limited Stock Available

Since its launch in 2009, the STEIN RC3001 has become one of the most respected and sought-after lowering bollards in the market, trusted by professionals worldwide.

Key Features:

• Independent Load Support: Unlike other winch-style bollards, the RCWINCH does not support the load during lowering. The load is supported on the bollard, with the winch attached to the lowering line independently through a friction hitch and winch line. This ensures the load is fully supported on the bollard, not the winch.
• Easy Mounting: Despite weighing over 13kg (excluding the winch and mounting straps), it can be easily mounted by one person using the top attachment point as a suspension point. The winch can be attached in seconds without tools.
• Large Diameter Drum: Accommodates working lines up to 19mm and has a working load limit of up to 3000kg (subject to mounting type). The drum features two sets of rope guides (fairleads) angled at 45 degrees, allowing quick addition or removal of wraps.
• Secure Attachment: A specially designed ratchet strap with waterproof webbing securely attaches the device to the tree. It can be backed up by securing an Anchor-Sling to the base anchor point. The device comes with two heavy-duty rubber inserts for tree protection.
• Winch System Compatibility: The RCWINCH can be easily attached and detached during use, allowing the bollard to be used independently or with the winch as needed. This flexibility is ideal for rigging jobs that do not always require lifting capability (sold separately).

Specifications:

• Bollard Diameter: 115 mm
• Working Load Limit (WLL): 3000 kg
• Maximum Rope Size: 19 mm
• Style: Fixed
• Finish: Plated & Powder Coated
• Weight: 13.3 kg

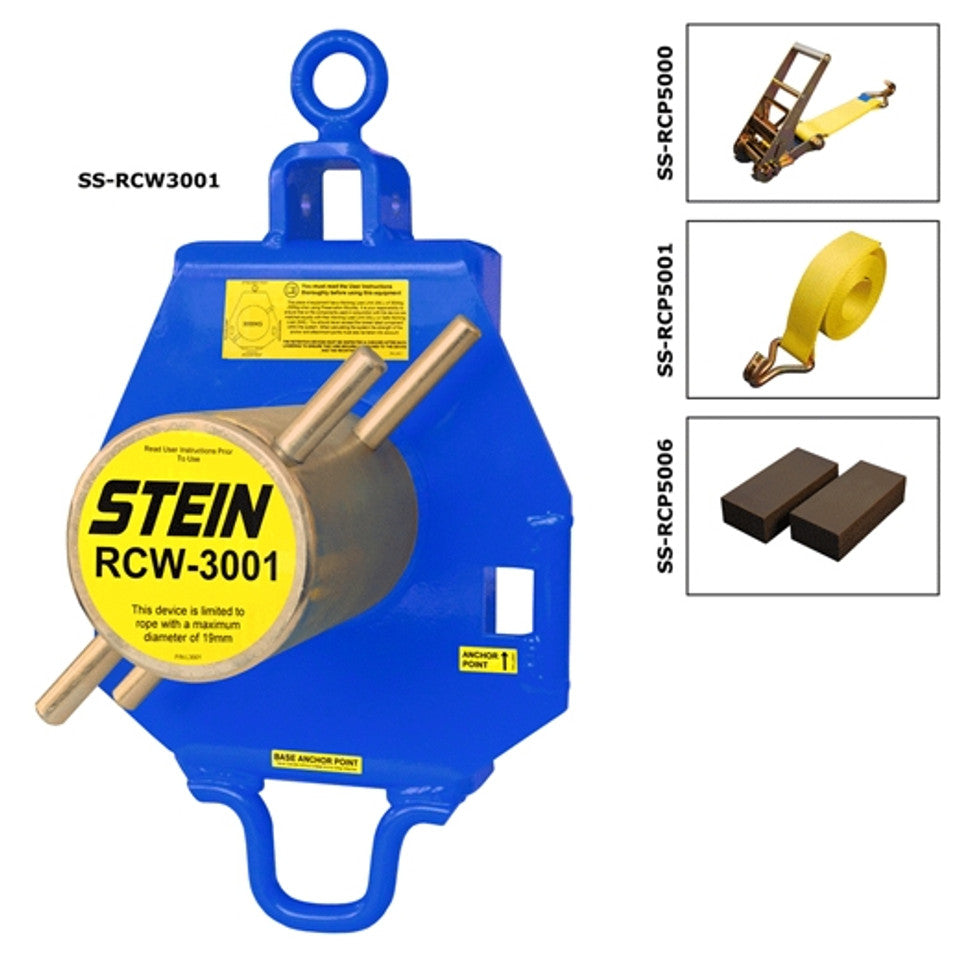

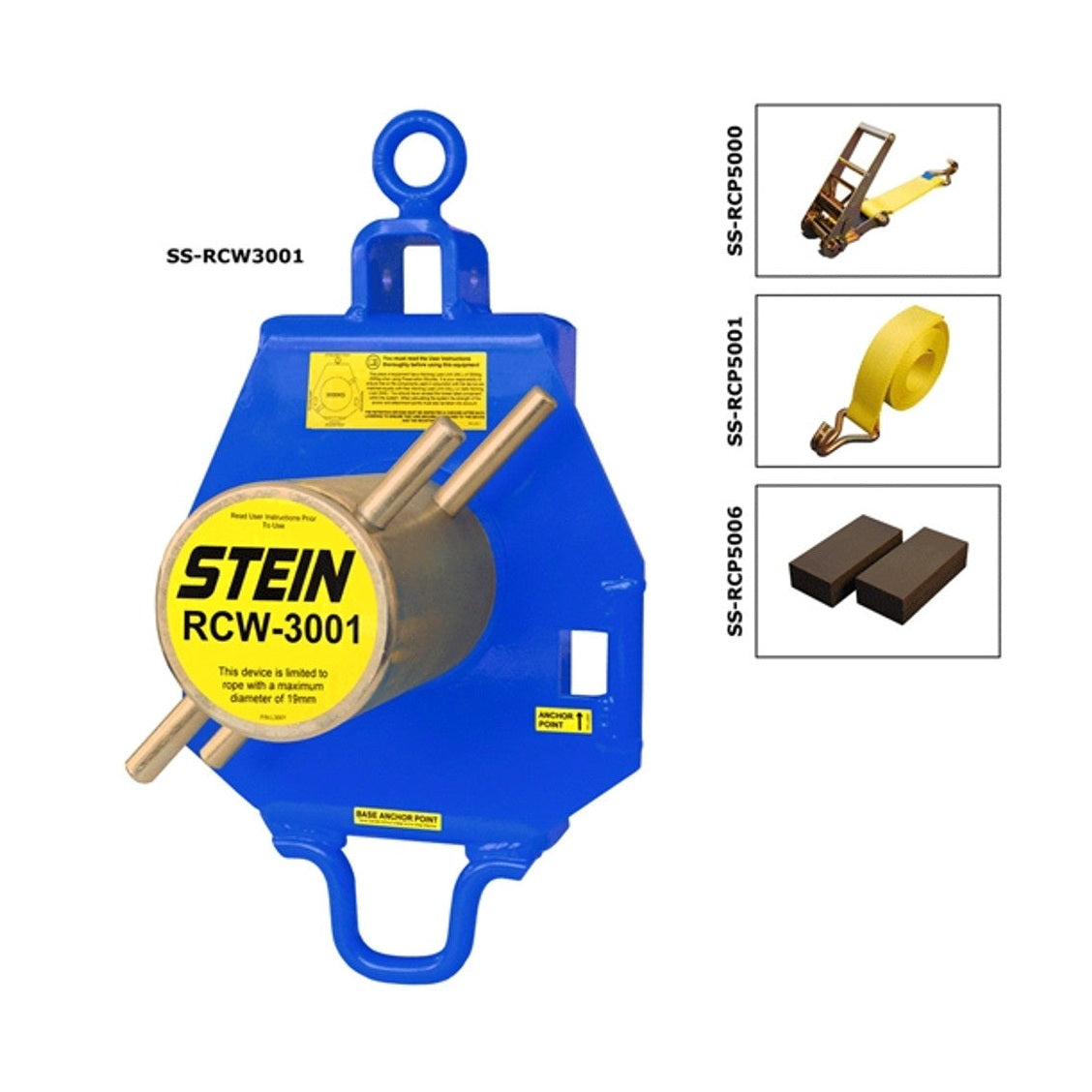

Kit Contents (SS-RCW3001-KIT):

• 1 x RCW-3001 Lowering Device

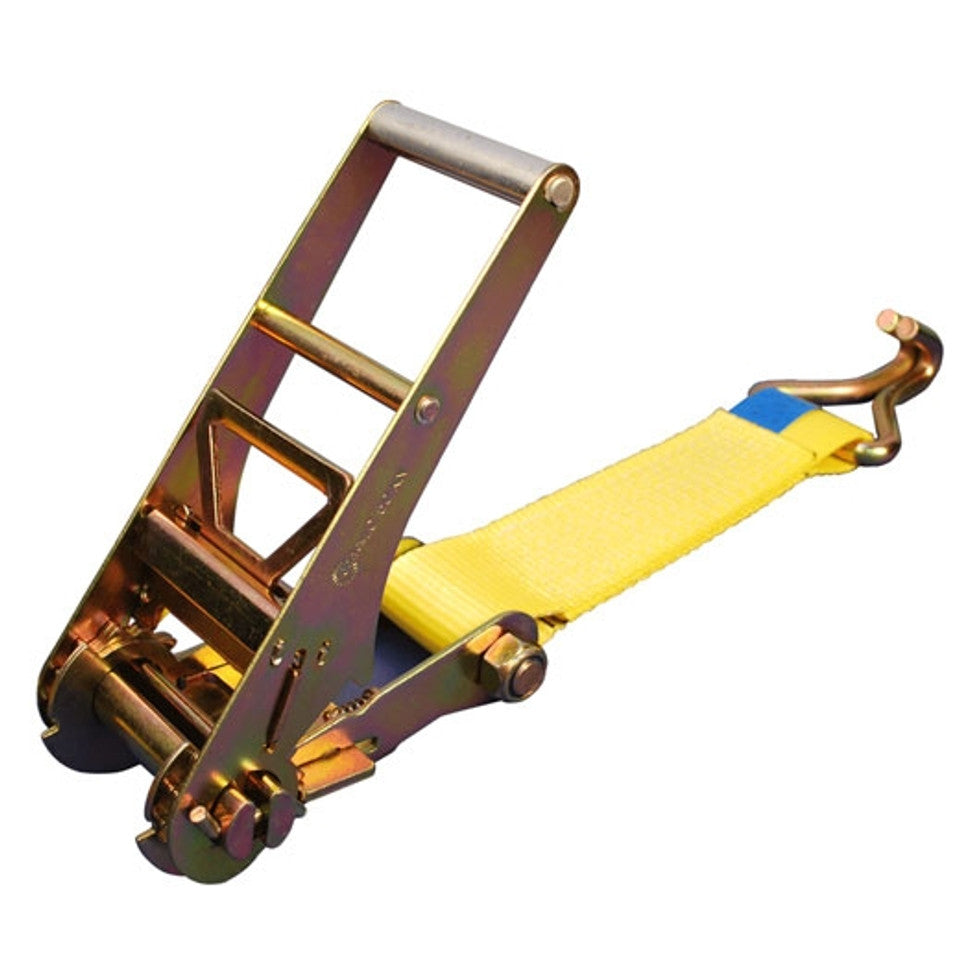

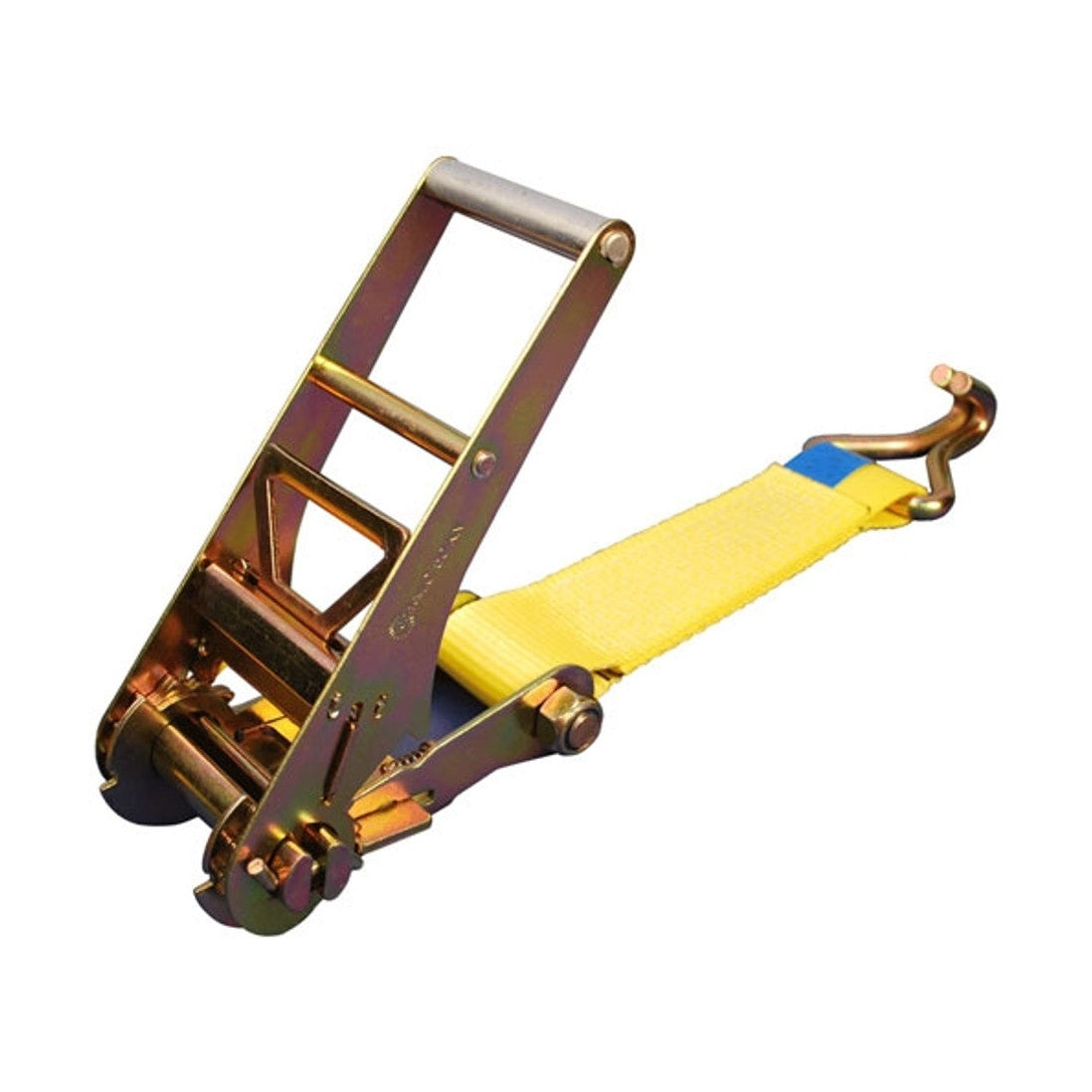

• 1 x 10t Ratchet Handle (RC-P5000)
• 1 x 5.8m Webbing (RC-P5001)
• 1 x Pair of Protection Rubbers (RC-P5006)

The RCW-3001 is probably the most user-friendly and flexible winching bollard on the market today, making it an essential tool for arborists and rigging professionals
